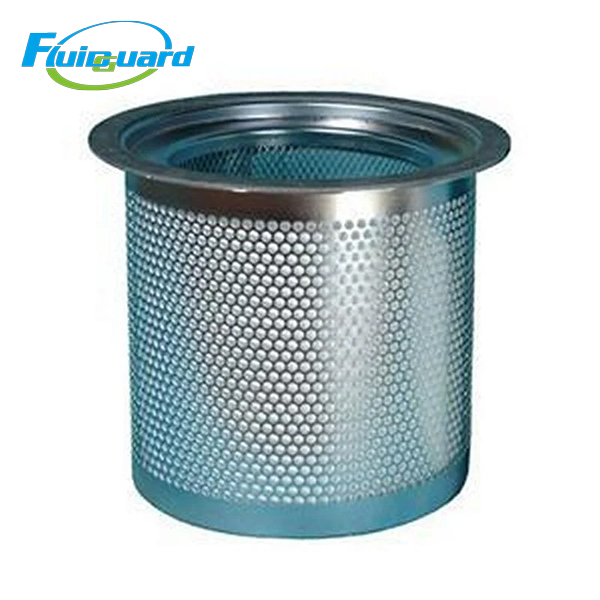

Oil Separators Filters

Part No: 6.3535.0

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Standard Service Life: 3500–4500 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Flange Outer Diameter: 435mm

Cartridge Outer Diameter: 398mm

Central Inner Hole Diameter: 320mm

Overall Height: 402mm

Application Scenarios

Auto parts processing, general machinery manufacturing, medium injection molding workshops, factory central compressed air stations, mining auxiliary air supply, food & pharmaceutical medium-scale production lines

Product Features

Multi-gradient high-density glass fiber media with sufficient oil mist storage capacity, anti-saturation under medium continuous loads, stably controls residual oil ≤3 ppm through full service cycle.

Moderate height deep-pleated low-resistance cylinder, slow differential pressure rising during long full-load operation, effectively reduce power consumption of 90–132kW main unit.

Double-layer perforated galvanized anti-static inner & outer support cages, anti-corrosion & anti-pressure surge; filter media will not deform or collapse under rated airflow, eliminate static ignition risk of oil mist.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to intercept micron-level lubricant oil aerosol in medium-flow compressed air. Separated lubricant flows back to compressor main unit via bottom central gravity oil return tube for recycling, greatly cut lubricating oil consumption and extend overall machine maintenance interval.

It fully protects downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and spraying equipment, lower breakdown frequency and maintenance cost of air post-processing purification system.
