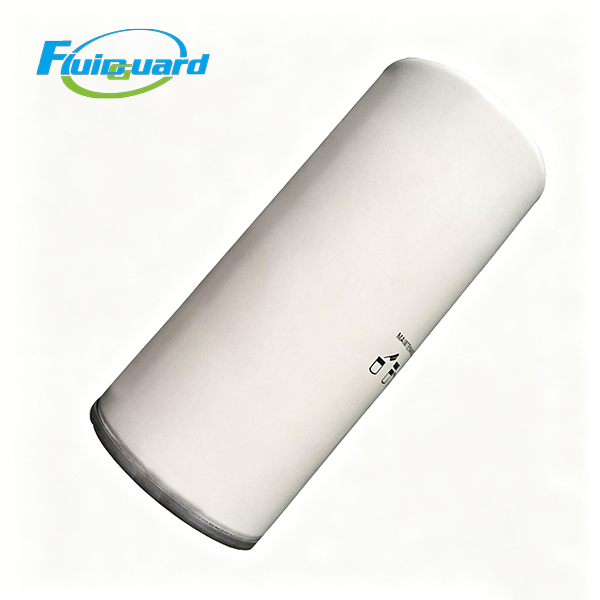

Oil Filters

It is constructed with cellulose filtration media housed in a durable steel canister to remove contaminants from the lubricating oil, ensuring the reliability and longevity of the equipment.

Function / Features:

Contaminant Removal:​ Filters out solid particles, sludge, and impurities to prevent wear on moving parts such as bearings, gears, and rotors.

Flow Capacity:​ Supports a permissible flow rate of 1.2 m³/h.

Anti-Drain Back Valve:​ Equipped with a valve to prevent oil from draining back into the crankcase when the compressor is shut off, ensuring immediate lubrication upon restart.

Bypass Valve:​ Features a bypass valve with an opening pressure of 2.5 bar​ to ensure continuous oil flow to the system if the filter media becomes clogged or during cold starts.

Real Size :

Total Height:​ 103 mm

Body Height:​ 93 mm

Outer Diameter:​ 93 mm
