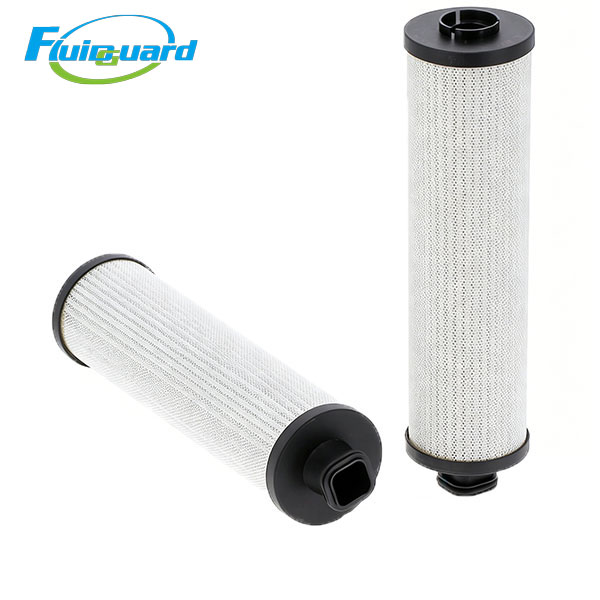

SH62356 Oil Filter

Model : SH62356

Type : Oil Filters

Replacement for : SH62356

Internal coolant filter, protects rotor and bearing set, extends service cycle of compressor oil and oil separator core, reduces unexpected shutdown maintenance cost.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: SH62356

Filtration precision: 10μm, filtering efficiency ≥99%

Service life: 2000 working hours under standard operating condition

Seal: High-temperature resistant NBR seamless O-ring

Bypass opening pressure: 0.12MPa

Working temperature: -20℃ ~ +120℃, Max working pressure: 2.5MPa

Dimension: OD82mm × ID34mm × Height186mm

Application

widely used in factory centralized air supply, chemical industry, mining and cement compressed air station.

Features

Deep-pleated glass fiber medium with large contaminant holding capacity, effectively intercept metal abrasive particles, carbon sludge and deteriorated oil impurities.

Integral galvanized metal inner support skeleton, anti-collapse under long-time system pressure fluctuation & equipment vibration.

Built-in differential pressure bypass valve, guarantees continuous lubricant circulation to prevent host dry friction when filter is clogged.

Description

Internal coolant filter, protects rotor and bearing set, extends service cycle of compressor oil and oil separator core, reduces unexpected shutdown maintenance cost.
