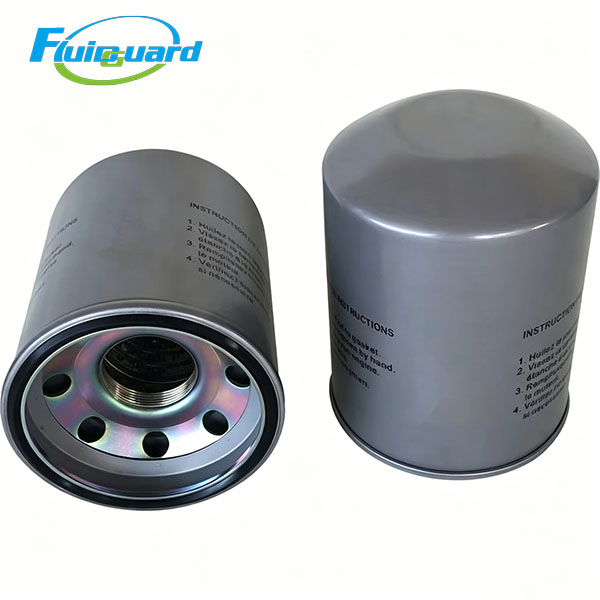

Model : 23935059
Type : Oil Filters
Replacement for : 23935059
Original internal coolant filter, cleans circulating lubricant, protects rotor and bearing assembly, extends service cycle of compressor oil and oil separator, reduces unexpected shutdown maintenance loss
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 23935059
Filtration precision: 10μm, filtration efficiency ≥99%
Service life: 2000 working hours; up to 3000hrs under clean operating condition
Seal: High-temperature resistant NBR O-ring
Bypass opening pressure: 0.12MPa
Working temp: -20℃ ~ +115℃, Max working pressure: 2.4MPa
Dimension: OD78mm × ID50mm × L205mm
Application
widely used in machinery, mining, chemical and central compressed air station.
Features
Deep-pleated fiber media with large dirt holding capacity to trap metal wear debris, carbon sludge and oil oxidation contaminants effectively.
Reinforced inner metal skeleton, anti-deformation under frequent system pressure fluctuation and vibration.
Built-in differential pressure bypass valve ensures continuous oil supply to avoid airend dry grinding when filter clogged.
Cartridge built-in structure with matched sealing ring, convenient for quick field replacement during routine maintenance.
Description
Original internal coolant filter, cleans circulating lubricant, protects rotor and bearing assembly, extends service cycle of compressor oil and oil separator, reduces unexpected shutdown maintenance loss
