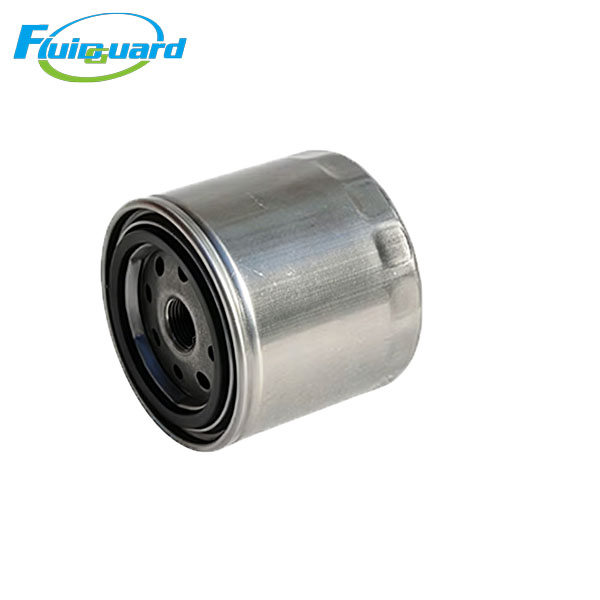

SH62417 Oil Filter

Model : SH62417

Type : Oil Filters

Replacement for : SH62417

Lube oil filter element , protects rotor & bearing assembly, prolongs service cycle of compressor oil and oil separator core, reduces unexpected equipment downtime loss.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: SH62417

Media: Import HV composite glass fiber

Filtration precision: 10μm, filtration efficiency ≥99%

Service life: 2000 working hours

Seal: High-temperature resistant NBR rubber O-ring

Bypass opening pressure: 0.12MPa

Working temp: -20℃ ~ +120℃, Max working pressure: 2.5MPa

Dimension: OD83mm × ID35mm × Height192mm

Application

widely used in factory central air supply, chemical, cement, mining compressed air station.

Features

Deep-pleated glass fiber media with large dirt holding capacity, effectively intercept metal abrasive debris, carbon deposition and deteriorated oil impurities.

Integral reinforced inner metal support skeleton, anti-collapse under long-term system pressure fluctuation & vibration.

Built-in differential pressure bypass valve, uninterrupted oil supply to avoid host dry wear once filter clogged.

Built-in cartridge installation, standard size for direct replacement of original Kaeser spare parts, quick on-site maintenance.

Description

Lube oil filter element , protects rotor & bearing assembly, prolongs service cycle of compressor oil and oil separator core, reduces unexpected equipment downtime loss.
