Oil Filters

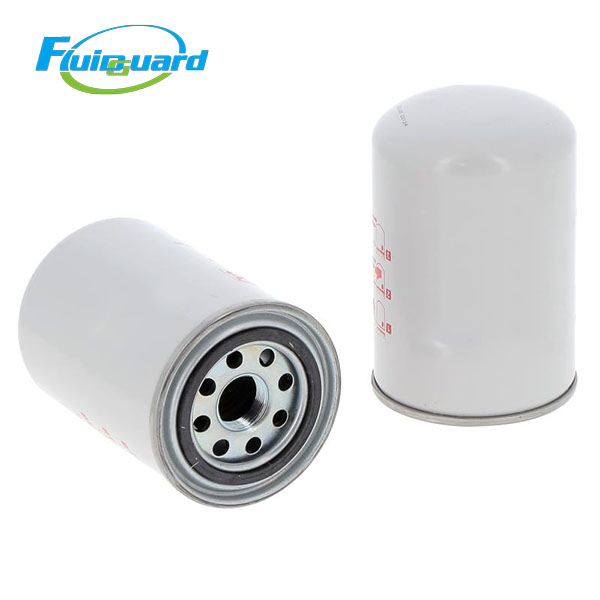

Part No: 1622062301

Filter Media: Imported multi-layer HV borosilicate micro glass fiber composite coalescing media

Filtration Precision: ≤0.1 μm fine oil mist capture

Separation Efficiency: ≥99.999%

Residual Oil Content at Outlet: ≤3 ppm

Standard Service Life: 3000–4000 working hours; shorten to 2000h under dusty & high-humidity workshop

Max Working Pressure: 1.4 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Gross Weight: 0.545 KG

Application Scenarios

Small electronic assembly workshops, laboratory air supply, small laser marking equipment, mini food packaging lines, small factory decentralized compressed air stations, dental medical air systems

Product Features

Multi-gradient high-density glass fiber media with stable oil holding capacity, anti-saturation under light continuous load, residual oil stably controlled ≤3 ppm for full service cycle.

Mini compact spin-on cylindrical design, slow differential pressure rise, effectively reduce power consumption of small low-power main units.

Integral anti-rust metal shell, shock & corrosion resistant; filter media will not deform under low airflow, eliminate static ignition risk of oil mist.Fluorine seal withstand high temperature & aging, zero leakage under frequent start-stop and temperature fluctuation to avoid air-oil bypass and excessive oil carry-over.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant oil aerosol mixed in tiny flow compressed air. Separated lubricant flows back to airend via built-in return channel for cyclic reuse, greatly reduce oil refilling frequency and extend whole machine maintenance cycle.

It fully protects downstream small refrigerated dryers, micro precision pneumatic valves, laser marking heads and spray guns, lower failure rate & maintenance cost of miniature post-air-treatment purification systems.
