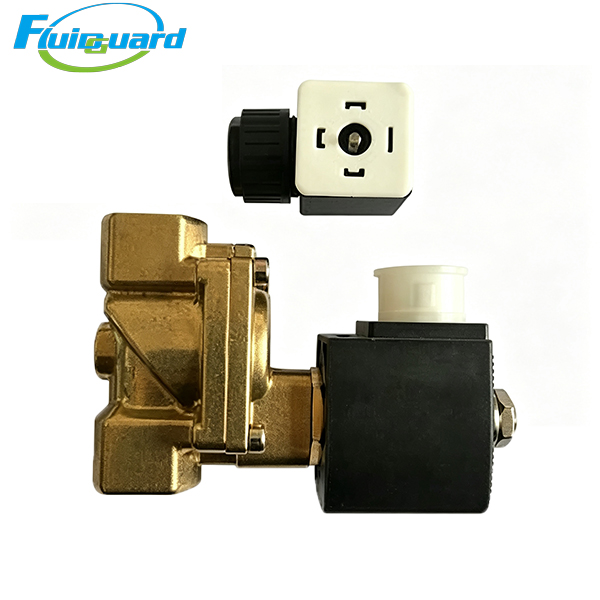

Model : 23402662
Type : Compressor Solenoid Valves
Replacement for : 23402662
It is a key unloading vent spare part, controlling compressed‑air circuit on‑off by coil energizing and de‑energizing to exhaust residual pressure during compressor unloading and shutdown.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Main Features
Brass Valve Body: High‑strength brass alloy body, excellent oil‑corrosion resistance, adapts to harsh compressor operating conditions.
Pilot‑assisted Diaphragm Structure: Low power consumption, stable switching performance, anti‑clogging against oil‑aerosol impurities in compressed air, suitable for frequent cyclic operation.
Industrial‑grade Coil: Stable actuation, fast response, good shock‑proof and dust‑proof performance for continuous workshop running.
Applications
Completes blow‑down venting while unloading or stopping. Releases residual pressure inside separator tank and pipelines, prevents heavy‑load motor startup and protects compressor main unit.
Extended Application: Venting and pressure‑relief control for other industrial pneumatic equipment, air receivers and filter systems with non‑corrosive compressed‑air medium.
Working Principle
De‑energized state: Main valve stays closed, vent passage blocked.
Energized state: Electromagnetic force drives pilot diaphragm to open main valve port for exhausting residual compressed air.
De‑energized: Spring resets diaphragm, valve closes, blow‑down cycle completed.
