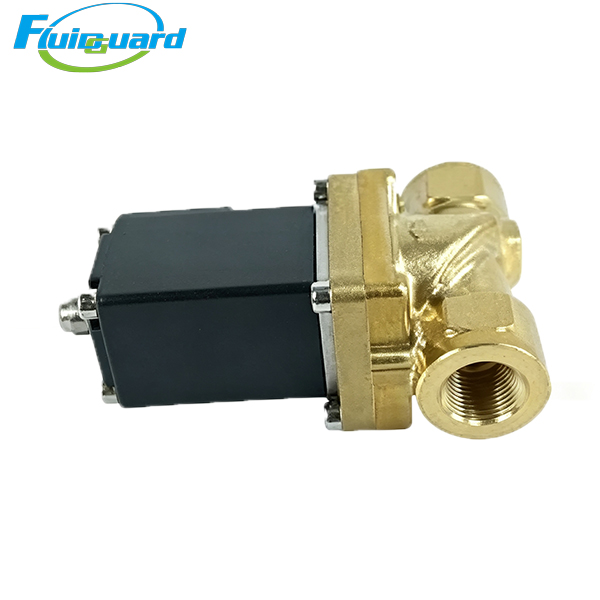

Model : 100008869
Type : Compressor Solenoid Valves
Replacement for : 100008869
It is a core load‑unload control component, controlling compressed‑air circuit on‑off by coil energizing and de‑energizing to realize compressor loading, unloading and blow‑off functions.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Main Features
Brass Valve Body: High‑strength brass construction, good oil‑corrosion resistance, adapts to harsh compressor working conditions.
Pilot‑assisted Diaphragm Structure: Low power consumption, stable switching performance, anti‑clogging against oil‑aerosol impurities in compressed air, suitable for frequent cyclic operation.
Industrial‑grade DC24V Coil: Fast response, excellent shock‑proof and dust‑proof performance, stable continuous operation in industrial workshop environment.
Applications
Controls intake actuator to complete automatic load‑unload cycles, performs blow‑down venting during unloading and shutdown. Releases residual pressure inside separator tank, prevents heavy‑load motor startup and protects compressor main unit.
Working Principle
De‑energized state: Main valve remains closed, air passage cut‑off.
Energized state: Electromagnetic force drives pilot diaphragm to open main valve port, air circuit is switched on.
De‑energized: Spring resets diaphragm, valve closes, one control cycle completed.
