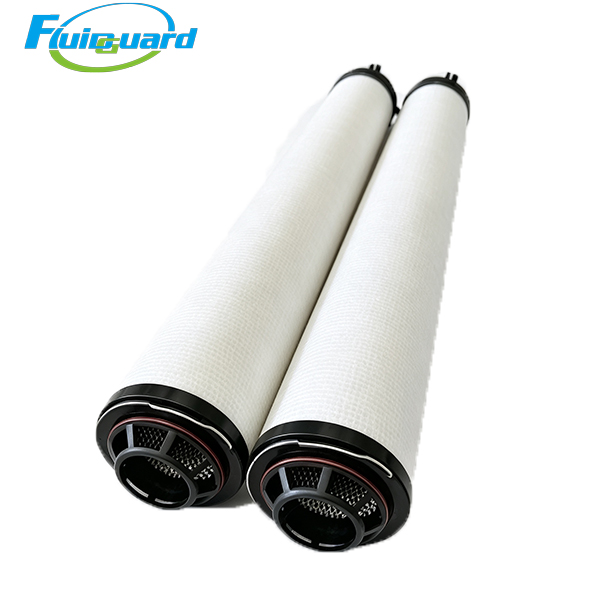

Coalescing Filters

Part No: MKO-2700-X

Core Technical Specifications

Multi-layer deep-pleated proprietary HV borosilicate gradient microglass composite media, outer integrated hydrophobic & oleophobic PU anti-re-entrainment drainage foam. Built-in liquid diversion barrier prevents coalesced liquid from being re-entrained by high-speed turbulent airflow.

Max Working Pressure: 1.6 MPa

6,000 operating hours / 12 months (whichever comes first) under clean low-dust industrial environments; shorten to 3,000–4,000 hours for paint spray booths, metal foundries and high-humidity dusty workshops. Mandatory replacement when differential pressure ΔP ≥ 0.06 MPa.

Initial pressure drop of brand-new element: ≤0.012 MPa

Mandatory alarm replacement threshold: ΔP ≥ 0.06 MPa

Sealing & Support Construction

End Cap: Reinforced integrated ABS molded end caps with built-in flow diversion channels and positioning buckles

Seal System: One-piece molded NBR nitrile rubber full-circle O-ring, zero bypass leakage, resistant to compressor oil aging and acidic condensate corrosion

Inner & Outer Support Cage: Single-layer perforated 304 stainless steel mesh, lightweight anti-collapse reinforcement for stable rated airflow

Key Product Advantages

Mid-stage primary coalescing barrier to protect downstream high-precision and carbon filters

Installed after MKO-2700-P particulate prefilter and before MKO-2700-Y ultrafine filter, it intercepts massive condensed pipeline water, rust scale and large 1μm liquid oil mist. It drastically reduces liquid contamination load on downstream precision elements, extends overall consumable service cycle and cuts factory maintenance expenditure.

Large dust & oil holding capacity with stable low differential pressure for continuous industrial production

Proprietary deep-fold microglass matrix stores large volume of oil sludge, pipeline rust and solid dust without rapid pressure rise, perfectly matching 24/7 non-stop production for medium-flow manufacturing workshops. Outer hydrophobic foam rapidly drains separated liquid to filter bowl drain port and minimizes oil re-entrainment risk.

High-temperature stable glass fiber media eliminates fiber shedding and full-system pipeline contamination

High-temperature fully cured borosilicate microglass maintains complete structural integrity under sustained 80°C operating temperature without softening, pulverization or fiber shedding. Zero glass fiber debris enters industrial piping to block spray guns, industrial laser optical lenses and proportional process control solenoid valves.

Low permanent differential pressure energy-saving design to reduce air compressor power consumption

Uniform gradient pleat layout delivers minimal airflow resistance over full service cycle under full rated flow capacity. Stable low backpressure reduces continuous motor loading of medium screw air compressors and significantly lowers long-term factory electricity operating costs.

Working Principle

Medium-volume pre-dried compressed air flows through the filter cartridge from outside to inside central core:

Large water droplets and coarse solid impurities are trapped by outer hydrophobic foam and drain down to the filter bowl drain port by gravity.

1μm oil-water micro-aerosols collide and coalesce into large separable liquid droplets while passing through multi-layer gradient borosilicate microglass media.

Outer integrated anti-re-entrainment foam barrier prevents separated liquid oil and water from being re-carried by high-speed medium-volume industrial compressed airflow.

Application Industries

Medium automotive component auxiliary air pipelines, medium-format industrial laser cutting & welding workshops, general machinery multi-station pneumatic tools, medium-scale food processing pneumatic conveying lines, medium pharmaceutical packaging air supply, common workshop compressed air systems requiring ISO 8573-1 Class 3 medium-clean industrial compressed air.
