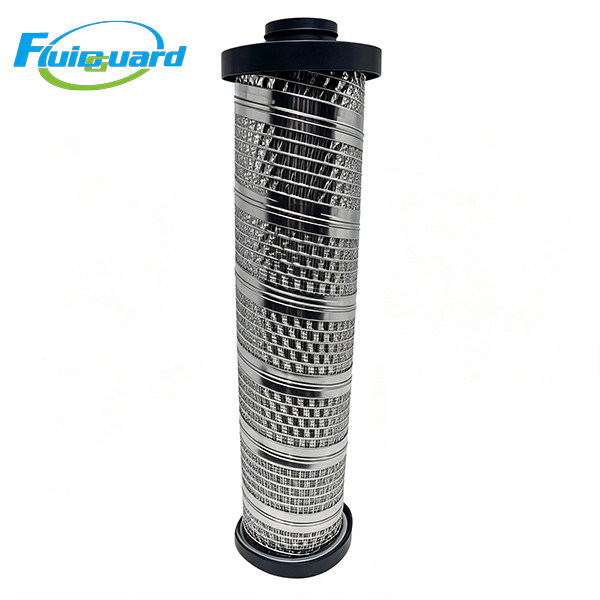

Model : K145ACS
Type : Coalescing Filters
Replacement for : K145ACS
It combines microfiber pre-filtration and high-performance activated carbon adsorption technology as the final purification barrier of the air treatment system. Operating stably within 1.5°C~30°C under maximum 16 bar pressure, it supplies odor-free, oil-vapor-free ultra-clean compressed air for high
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Key Product Features
Dual-layer composite adsorption media
Front 0.01μm borosilicate microfiber pre-layer intercepts residual micro oil mist and fine solid particles, preventing liquid contaminants from soaking carbon bed and shortening adsorption cycle. High-specific-area activated carbon core fully adsorbs gaseous oil vapor, volatile organics and unpleasant odors which coalescing filters cannot remove.
Anti-corrosion fully sealed reinforced cartridge
316 stainless steel inner support tube + perforated stainless steel outer protective mesh; glass-filled nylon twist-lock end caps integrated with NBR nitrile sealing gasket. Internal epoxy anti-rust coating delivers stable corrosion resistance against compressor condensate and diluted lubricating oil, zero air bypass leakage after installation.
Low pressure drop energy-saving radial flow design
Uniform carbon cloth wrapping and evenly distributed pleated pre-filter maximize effective adsorption area, maintaining ultra-low initial differential pressure (70 mbar dry) during long-term continuous operation, reducing air compressor power consumption and factory overall air supply costs. Optimized inside-out airflow avoids turbulence and rapid pressure accumulation.
Application Industries
Pharmaceutical sterile workshops, food & beverage aseptic filling production lines
Semiconductor wafer manufacturing, precision electronic assembly, optical lens processing
Medical & dental pneumatic equipment, laboratory ultra-high-purity gas supply
High-gloss automotive clear coat spraying, aerospace precision part surface treatment, breathing air treatment systems
Brief Overview
It combines microfiber pre-filtration and high-performance activated carbon adsorption technology as the final purification barrier of the air treatment system. Operating stably within 1.5°C~30°C under maximum 16 bar pressure, it supplies odor-free, oil-vapor-free ultra-clean compressed air for high-standard precision industrial production with strict air cleanliness control requirements.
