Coalescing Filters

Key Product Features

5-layer composite hydrophobic glass fiber filter media

Consists of inner & outer non-woven protective layers, double-layer high-precision hydrophobic glass fiber and supporting mesh, equipped with foamed hydrophobic drainage layer. Condensed oil and liquid water flow down by gravity to avoid secondary mist re-entrainment.

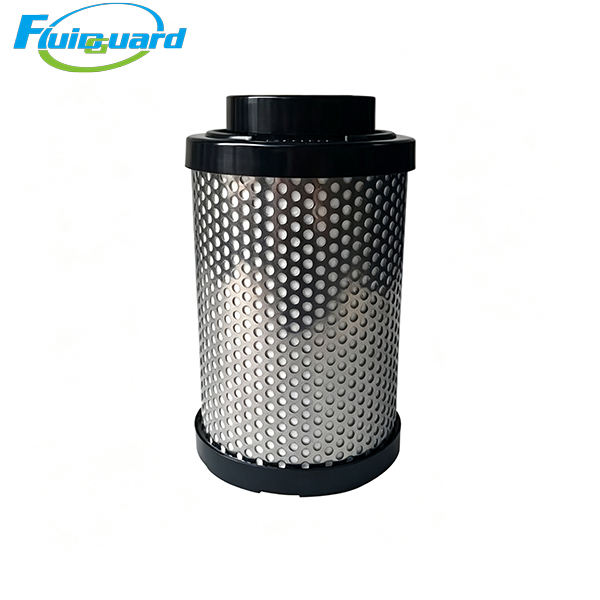

Double-layer 304 stainless steel reinforced fully sealed cartridge

Inner and outer perforated stainless steel support mesh firmly fixes filter media to prevent deformation, collapse and air bypass under high-pressure airflow. Integrated injection-molded reinforced plastic end caps with one-piece NBR sealing gasket eliminate air leakage completely, with excellent resistance to compressor oil and condensate corrosion.

Low pressure drop energy-saving deep pleat structure

Uniform deep pleating maximizes effective filtration area with ultra-low initial differential pressure. The pressure rise stays gentle during long-term continuous operation, reducing air compressor load and power consumption. Radial inside-out airflow design ensures smooth air circulation without turbulence.

Application Industries

General machinery processing, pneumatic packaging and conventional automation equipment

Small & medium standard paint booths, auto repair pneumatic tools

Textile machinery, general laboratory gas supply, light food & beverage production lines

Midstream protection for refrigerated dryers and standard pneumatic control valves

Brief Overview

Adopting 5-layer gradient hydrophobic glass fiber media, it serves as the transitional purification stage between the coarse pre-filter and high-efficiency micro mist filter. It effectively reduces contamination load on downstream EMS and EKS precision filter elements, extends the service life of post-processing equipment and cuts overall factory filter maintenance costs for standard industrial compressed air treatment.
