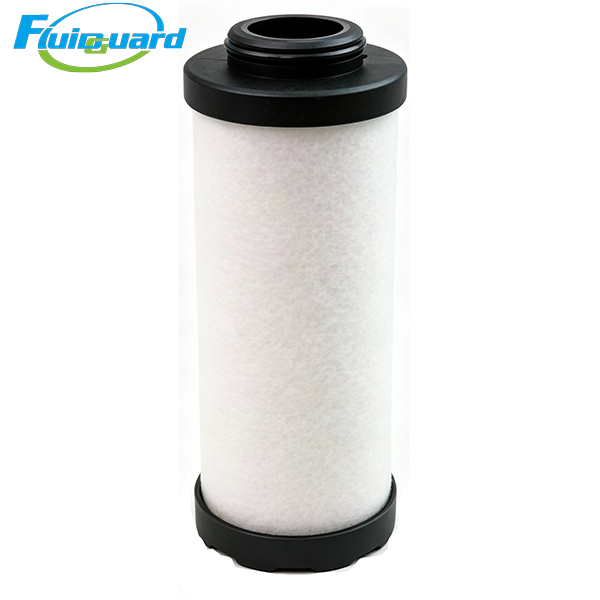

CE0018B Coalescing Filter

Model : CE0018B

Type : Coalescing Filters

Replacement for : CE0018B

All solid dust particles above 1μm are trapped on the outer polyester media layer; bulk liquid water and large oil droplets collide with glass fiber and aggregate into heavy liquid drops.Condensed oil and water slide down the filter surface by gravity and accumulate in the bottom drain bowl of filte

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Core Technical Specifications

Filtration Precision: 1 μm solid dust particle interception

Separation Efficiency for liquid water & large oil aerosols: ≥99%

Initial Pressure Drop: ≤0.012 MPa

Replacement Alarm Differential Pressure Threshold: ≥0.05 MPa

Standard Service Life: 2,000 running hours

Working Condition Parameters

Max Working Pressure: 16 bar

Operating Temperature Range: +1°C ~ +80°C

Applicable Medium: Compressed air mixed with liquid water, coarse oil mist, dust particles

Sealing Material: Double-sided integrated EPDM rubber gaskets, zero bypass leakage

Support Structure: Inner & outer stainless steel perforated mesh, anti-collapse under high airflow

Working Principle

All solid dust particles above 1μm are trapped on the outer polyester media layer; bulk liquid water and large oil droplets collide with glass fiber and aggregate into heavy liquid drops.

Condensed oil and water slide down the filter surface by gravity and accumulate in the bottom drain bowl of filter housing.

Primary cleaned compressed air flows out through central channel and enters high-efficiency CE0018A filter or refrigerated dryer for further purification.
