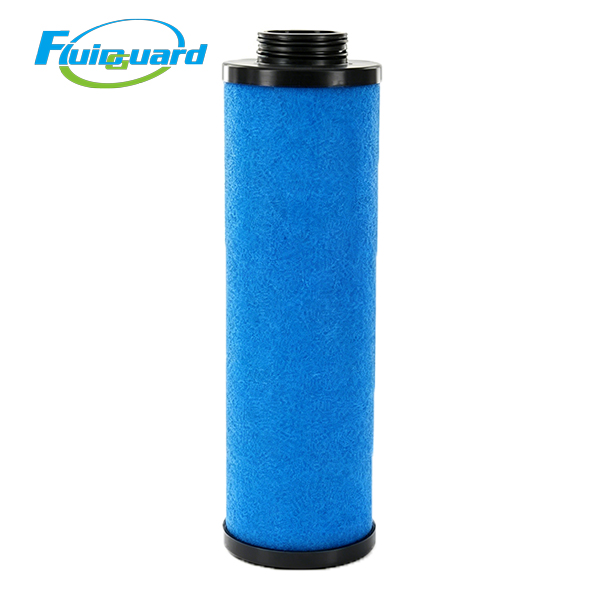

Coalescing Filters

Part No: 9.4877.0

Filter Grade: KB‑Grade basic coalescing

Filtration Accuracy: 1μm, Filtration Efficiency: 99.92%

Residual Oil Aerosol: 0.1ppm

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ102×420mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Imported borosilicate micro‑glass‑fiber depth media with polyester hydrophobic drainage fiber layer

Main Features

Hydrophobic polyester drainage layer enables fast condensate drainage and reduces liquid re‑entrainment risk.

Deep‑pleated composite media with high dirt‑holding capacity, anti‑fiber shedding and stable pressure‑drop performance for low energy loss.

Particulate pre‑filter may be installed upstream; downstream match with 9.4878.0(KE) high‑efficiency coalescing element, protects refrigerated and desiccant dryers and extends fine‑filter service life.

Suitable for intermediate‑stage purification for air‑compressor main‑line, general‑industry air supply and pre‑treatment for painting and pneumatic equipment.

Application Industries

Air‑compressor post‑treatment system, pre‑filtration for painting & coating, automation pneumatic equipment, food packaging, general factory air supply, mechanical‑equipment air‑source purification

Product Summary

With 1μm filtration rating, it fits F‑16 filter housing and removes particles, condensate and bulk oil mist as intermediate‑stage protection filter. Direct replacement for original filter element
