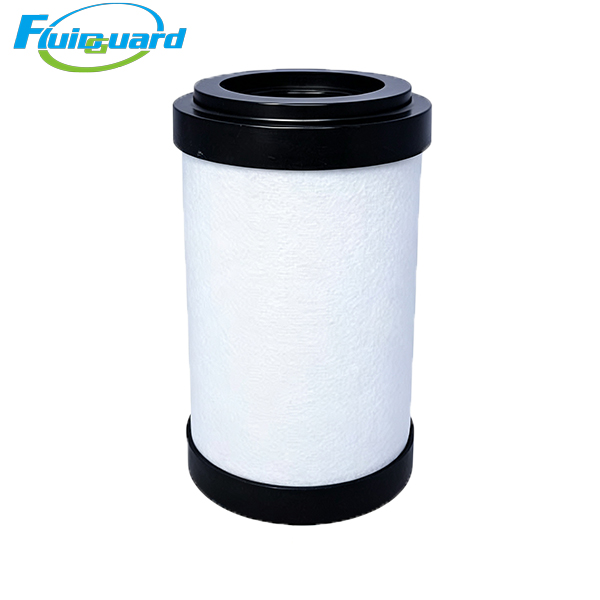

Coalescing Filters

Part No: 12075M

Filter Grade: M‑Grade medium coalescing

Filtration Accuracy: 1μm, Filtration Efficiency: 99.92%

Residual Oil Aerosol: 0.5ppm

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ95×270mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Imported borosilicate composite glass‑fiber gradient depth media with hydrophobic drainage layer

Main Features

Hydrophobic‑oleophobic depth‑type glass‑fiber media. Condensed oil‑water condensate drains rapidly to prevent liquid re‑entrainment into downstream pipeline.

Gradient multi‑layer pleated composite media with high dirt‑holding capacity, anti‑fiber shedding and stable pressure‑drop performance during long‑term continuous‑run operation.

Suitable for intermediate‑stage purification of air‑compressor pipeline, general‑industry air supply and pre‑treatment for painting and pneumatic equipment.

Application Industries

Air‑compressor post‑treatment system, pre‑filtration for painting & coating, automation pneumatic equipment, food packaging, general factory air supply, mechanical‑equipment air‑source purification

Product Summary

With 1μm filtration rating, it fits 120 series filter housing and removes particles, condensate and most oil mist as intermediate‑stage protection filter. Direct replacement for original filter element
