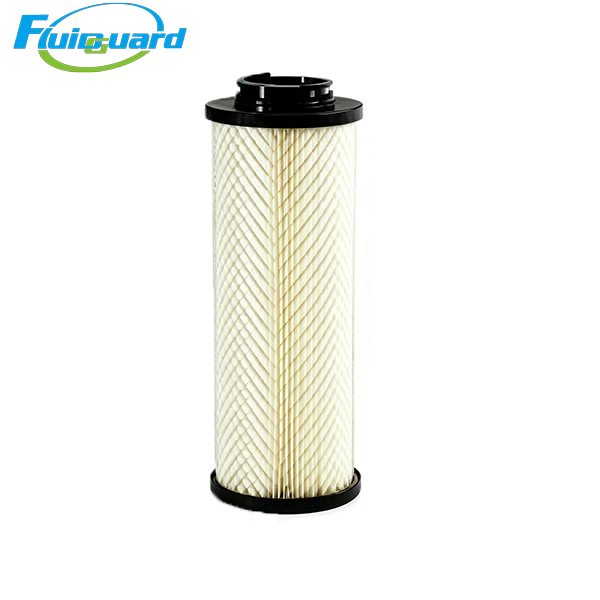

Coalescing Filters

Part No: QF0025

Filtration Accuracy: 5μm, solid‑particle retention

Function: Trap solid particles, rust, welding slag and bulk liquid condensate, not for deep oil‑mist removal

Compatible Housing: QF0025 series filter housing

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +80℃

Dimension: Φ65×245mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Main Features

QF‑grade first‑stage pre‑filter, removes solid contaminants above 5μm, pipeline rust, welding slag and bulk condensate, complies with ISO8573‑1 compressed‑air quality standard.

High‑capacity pleated filter media with large dirt‑holding capacity, anti‑fiber shedding, stable pressure‑drop performance during long‑term continuous‑run operation.

Stainless‑steel inner‑outer retainer mesh resists air‑flow impact and prevents media debris entering downstream pipeline.

Applied at air‑compressor outlet main‑line, works within multi‑stage compressed‑air purification system.

Application Industries

Air‑compressor pre‑filtration system, refrigerated‑dryer inlet protection, upstream protection for painting lines, automation pneumatic equipment, food packaging, general factory air supply, mechanical‑equipment air‑source purification

Product Summary

It fits QF0025 filter housing and traps solid contaminants and bulk condensate as first‑stage pre‑treatment filter. Direct replacement for original filter element
