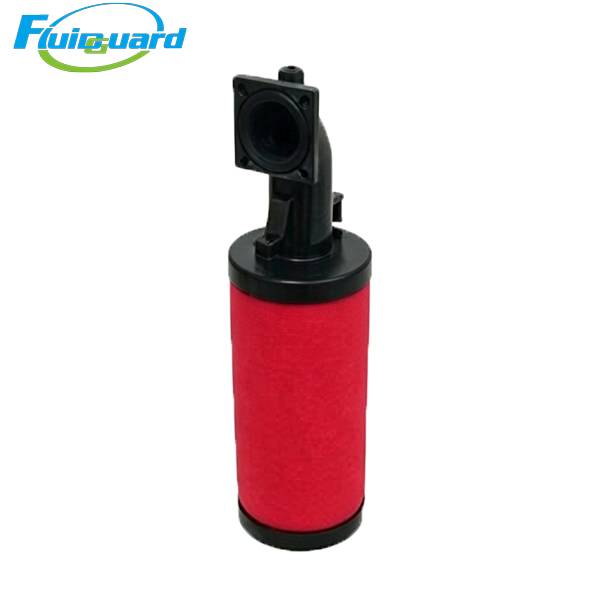

Coalescing Filters

Part No: 88343462

Product Name: Compressed Air Coalescing Filter Element

Filter Medium: Multi‑layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤0.01 ppm

Service life: 4000‑6000 working hours

Max operating temperature: 100℃

Rated working pressure: 16 bar

Structure: Straight cylindrical cartridge with built‑in locating stem

Sealing material: High‑temperature fluororubber sealing ring

Main Features

Multi‑gradient high‑efficiency coalescing media, excellent removal of oil mist, liquid water and fine solid particles in compressed air.

Reinforced inner & outer perforated metal support cage, resist deformation under long‑term high‑speed airflow impact.

Reliable end‑cap potting and sealing structure, prevent air bypass and avoid filtration efficiency attenuation.

Low initial pressure drop, reduce energy consumption of compressed air post‑processing system.

Optimized pleating design, large dirt‑holding capacity, stable long‑term filtering performance.

Application Industry

Widely used in precision machining, automotive spraying, electronics manufacturing, food processing, pharmaceutical industry, laboratory instruments and other industries requiring high‑purity compressed air.

Brief Summary

It removes oil aerosols, moisture and solid contaminants from compressed air, protects downstream pneumatic equipment and ensures stable high‑quality compressed air supply.
