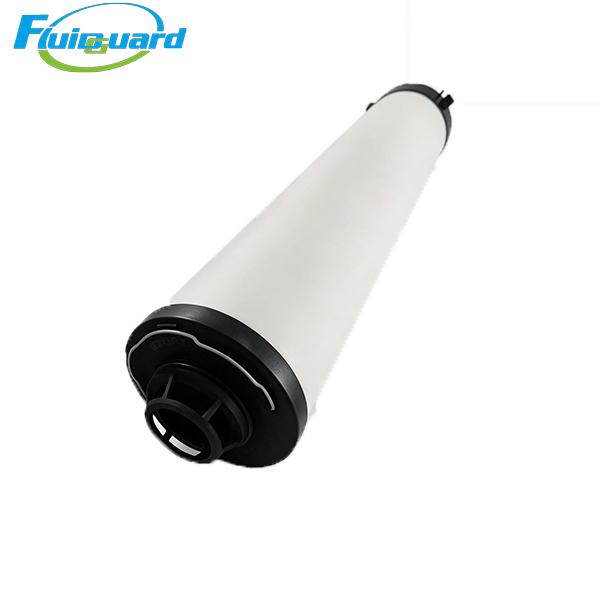

Coalescing Filters

Part No: MKO1210-Y

Residual oil content: ≤0.01 ppm

Service life: 4000–6000 working hours

Max operating temperature: 100℃

Rated working pressure: 16 bar

Structure: Straight cylindrical cartridge type

Sealing material: High-temperature fluororubber O-ring

Dimension: OD 76 mm, Height 509 mm

Main Features

Standard cylindrical cartridge structure, perfectly matched with Mikropor MK series filter housing, simple installation and quick replacement.

Multi-gradient high-efficiency coalescing medium, excellent removal performance for submicron oil mist, liquid water and solid fine particles in compressed air.

Reinforced inner & outer perforated metal support cage, effectively prevent medium deformation under long-term high-speed airflow impact.

Integrated end cap potting technology, reliable sealing performance to avoid air bypass and prevent filtration efficiency attenuation.

Low initial pressure drop, effectively reduce continuous energy consumption of compressed air post-processing system.

Optimized pleating layout, large dust & liquid holding capacity, stable long-cycle filtering performance.

Application Industry

Original interchangeable spare parts for industrial compressed air pipeline filtration system. Widely used in precision machining, automobile spraying, electronic manufacturing, food processing, pharmaceutical industry, laboratory instrumentation and other industries requiring high-clean compressed air.

Brief Summary

It removes oil aerosols, moisture and solid contaminants from compressed air, protects downstream pneumatic equipment and guarantees stable compressed air quality.
