Coalescing Filters

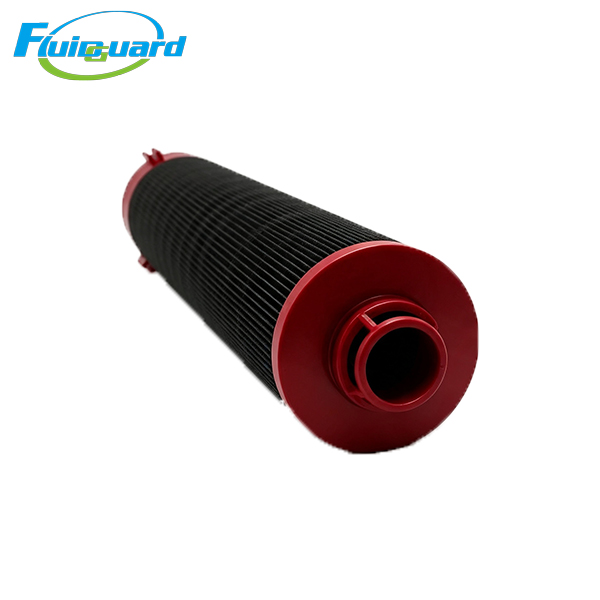

Part No: MKO1210

Product Name: Compressed Air Coalescing Filter Element

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤0.01 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Structure: Straight cylindrical cartridge

Sealing material: High-temperature fluororubber

Main Features

Multi-gradient high-efficiency coalescing medium, excellent removal performance for ultrafine oil mist, water vapor and solid impurities in compressed air.

Reinforced inner & outer perforated metal support cage, anti-deformation under long-term high-speed airflow impact.

Integrated integral end cap potting technology, reliable sealing to prevent air bypass and avoid filtration efficiency attenuation.

Low initial pressure drop, effectively reduce continuous energy consumption of air compressor system.

Optimized pleating layout, large effective filtration area, stable long-term filtering performance and good compatibility with various compressor lubricants.

Application Industry

Original interchangeable spare parts for compressed air post-processing filtration system. Widely used in precision machinery, spray painting, electronic manufacturing, food & pharmaceutical, instrumentation and other industries requiring high-purity compressed air.

Brief Summary

It eliminates oil aerosols, moisture and solid contaminants inside compressed air, protects downstream pneumatic equipment and guarantees stable compressed air quality.
