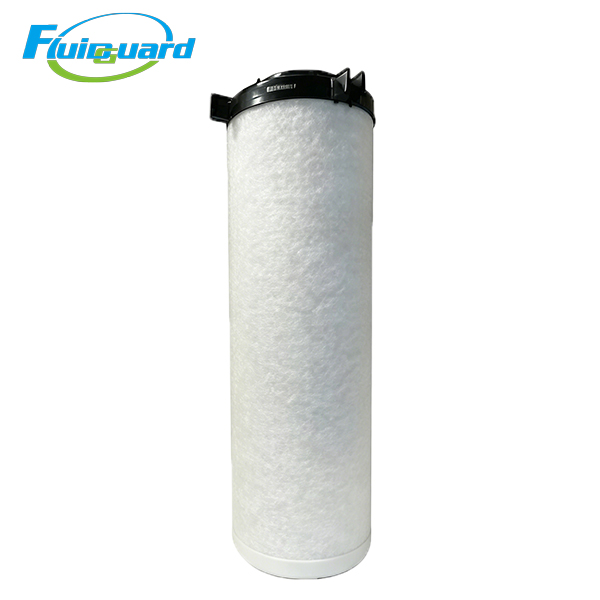

Model : 85566230
Type : Coalescing Filters
Replacement for : 85566230
It adopts multi-layer depth gradient matrix hybrid borosilicate microfiber as core filter media, equipped with a special oil & acid resistant closed foam drainage sleeve. This unique structure intercepts pipeline rust, condensed water droplets and ultra-fine oil aerosol step by step, while isolating
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model No: 85566230
Filter Type: HE Grade High Efficiency Coalescing Filter Element
Filtration Precision: 0.1μm
Max Outlet Residual Oil: ≤0.01 PPM
Max Working Pressure: 1.6 MPa
Max Working Temperature: ≤48.9℃
Standard Service Life: 3500–4000 working hours
Application Scope
Automobile high-gloss topcoat spraying workshops, precision laser cutting workshops
Pharmaceutical aseptic manufacturing, food sterile packaging production lines
Dust-free electronic component assembly, optical lens processing
Chemical plants, centralized industrial compressor stations, high-end textile setting equipment
Product Features
Large-area deep pleated microfiber structure delivers outstanding dirt & water holding capacity, extending replacement cycle of terminal AC activated carbon filters.
Special closed foam drainage sleeve prevents secondary oil carryover, stable deoiling performance under continuous large airflow.
Thickened perforated stainless steel inner support frame with high structural rigidity, corrosion-resistant and non-deformable under 16bar working pressure.
Imported HV borosilicate microfiber withstands high temperature, acid, alkali and compressor oil corrosion, zero fiber shedding to eliminate secondary air contamination.
Optimized streamlined pleat layout maintains ultra-low initial pressure drop, cutting overall energy consumption of air compressor station and reducing long-term operating cost.
Integrated elastic sealing end cap closely fits filter housing to completely eliminate bypass air leakage; snap-in quick-install design for easy disassembly and replacement.
