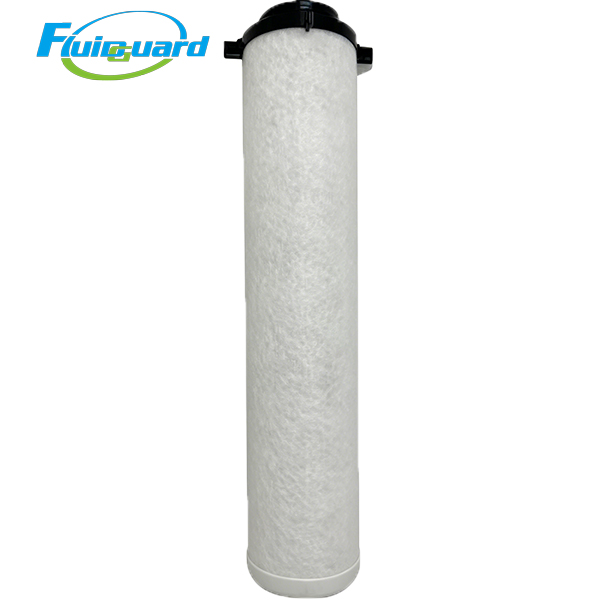

Model : 85566214
Type : Coalescing Filters
Replacement for : 85566214
It adopts multi-layer progressive gradient depth microfiber media with built-in drainage structure. This structure efficiently traps coarse solid contaminants including welding slag, pipe scale, sand dust and large condensed water droplets carried in compressed air, reducing residual oil content bel
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model No: 85566214
Filter Type: GP Grade General Purpose Coalescing Filter Element
Filter Media: Gradient Composite Depth Microfiber
Filtration Precision: 1μm
Max Outlet Residual Oil: ≤0.5 PPM
Max Working Pressure: 1.6 MPa
Max Working Temperature: ≤48.9℃
Standard Service Life: 3500–4000 working hours
Application Scope
widely used in industries requiring general clean compressed air:
Auto parts spraying workshops, general machinery processing plants
Textile manufacturing factories, food packaging production lines, chemical factories
Centralized industrial compressor stations, laser cutting auxiliary air supply
Common pneumatic tools, dust-free workshop general air supply
Product Features
GP general coalescing grade, 1μm filtration precision, oil removal efficiency ≥99%, outlet residual oil ≤0.5ppm, compliant with ISO8573-1 compressed air purity standard.
Deep evenly folded layout provides huge dirt & water holding capacity, effectively extending service life of rear HE and AC filter elements.
Thickened perforated stainless steel inner support frame with high structural rigidity, stable under working pressure up to 16 bar.
Imported HV composite microfiber, resistant to high temperature and compressor oil corrosion, no fiber shedding to avoid secondary air pollution.
Optimized streamline pleat design maintains ultra-low initial pressure drop, cutting overall power consumption of air compressor station and lowering long-term operation cost.
Integrated elastic sealing end cap closely fits filter housing to completely eliminate bypass air leakage.
Snap-in quick-install design for easy disassembly and replacement, effectively reducing overall system maintenance cost.
