Coalescing Filters

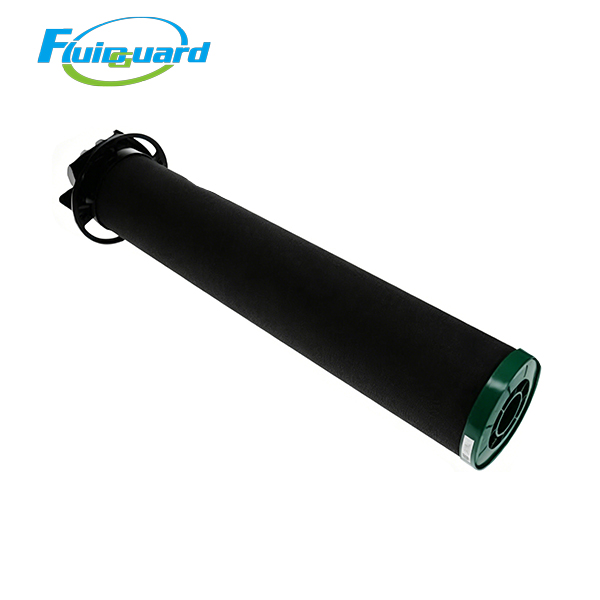

Model No: 2901207959

Filter Type: DD High Efficiency Coalescing Filter Element

Filter Media: Gradient HV Borosilicate Composite Microfiber

Filtration Precision: 0.01μm

Max Outlet Residual Oil: ≤0.01 PPM

Max Working Pressure: 1.6 MPa

Max Working Temperature: ≤48.9℃

Standard Service Life: 3500–4000 working hours

Application Scope

widely used in:

Automobile high-gloss spraying production lines, laser cutting workshops

Pharmaceutical aseptic manufacturing, food & beverage sterile filling

Dust-free electronic component assembly, optical lens processing

Centralized industrial air compressor stations, general precision pneumatic equipment

Product Features

DD high-efficiency coalescing grade, 0.01μm filtration precision, oil removal efficiency ≥99.99%, outlet residual oil ≤0.01ppm, compliant with ISO8573-1 Class 2 clean air standard.

Deep uniform pleated layout creates large effective filter area, strong dirt & water holding capacity to lower frequent replacement frequency.

Thickened perforated stainless steel inner support frame with high structural rigidity, stable under max working pressure 1.6MPa (16 bar).

Imported HV borosilicate microfiber withstands high temperature and compressor lubricant corrosion, no fiber shedding to avoid secondary air pollution.

Optimized streamline pleat design maintains ultra-low initial pressure drop, reducing total energy consumption of the air compressor station.

Integrated elastic sealing end cap closely fits filter housing to eliminate bypass air leakage completely.

Easy disassembly and replacement, effectively cutting maintenance costs of downstream activated carbon filters and adsorption dryers.
