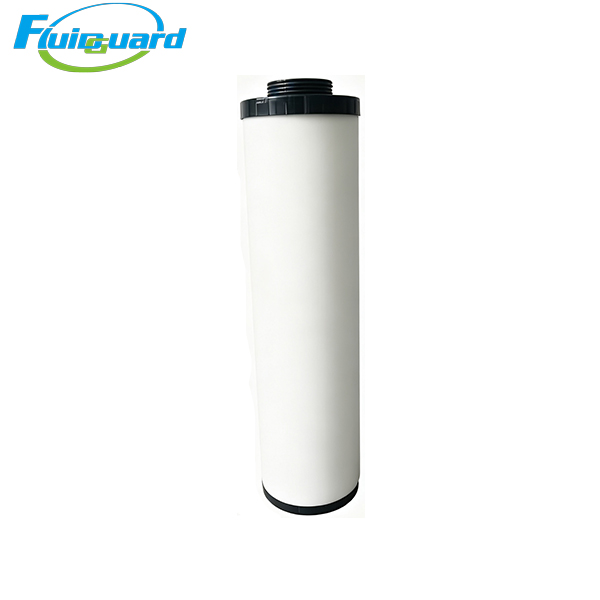

2901207204 Coalescing Filter

Model : 2901207204

Type : Coalescing Filters

Replacement for : 2901207204

Made of multi-layer micro glass fiber with 0.01μm precision, it removes 99.99% oil mist to keep residual oil ≤0.01ppm. With stainless steel support mesh and integrated EPDM sealing, it runs reliably under 16 bar and 1–80°C, with 6000-hour service life. This threaded disposable filter provides ultra-

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Main Features

Ultra-high precision multi-layer glass fiber media

Adopts gradient borosilicate micro glass fiber, filtration precision up to 0.01μm. Captures micro oil mist, fine dust and water droplets, oil removal efficiency ≥99.99%, residual oil in outlet air ≤0.01ppm. Built-in hydrophobic drainage layer avoids secondary atomization of liquid pollutants.

Reinforced anti-deformation sealing structure

Double-layer stainless steel perforated inner and outer support mesh prevents filter media collapse under long-term airflow impact. Integrated EPDM rubber sealing end caps realize full sealing to avoid air bypass leakage. Standard threaded plug-in structure, stable operation at 1–80°C, max working pressure 16 bar.

Main Applications

Widely used in high-gloss paint spraying, laser cutting, precision electronic assembly, pharmaceutical, food processing and laboratory gas supply lines.

Core function: Remove micro oil mist and tiny moisture in compressed air, protect rear activated carbon filters and precision production equipment from oil contamination, achieve ultra-clean compressed air that meets high-standard production requirements.
