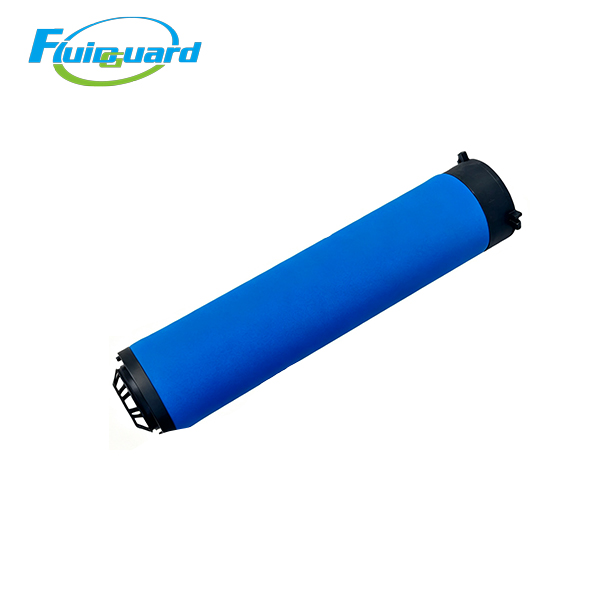

2258290118 Coalescing Filter

Model : 2258290118

Type : Coalescing Filters

Replacement for : 2258290118

With 0.01μm high precision, it fits CPFM filter housing and deeply removes ultra‑fine oil‑mist and fine solid contaminants to deliver clean compressed air with residual oil aerosol of 0.01ppm.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 2258290118

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.998%

Residual Oil Aerosol: 0.01ppm

Rated Flow: 14.2m³/min

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ86×320mm

Service Life: 5000‑8000h; replace when pressure drop reaches 0.35bar; standard service interval 8000 hours or 1 year

Filter Media: Imported borosilicate micro‑glass‑fiber gradient depth media with polyester hydrophobic drainage layer

Main Features

Hydrophobic polyester drainage layer enables fast condensate drainage and reduces liquid re‑entrainment risk.

Gradient multi‑layer composite media with high dirt‑holding capacity, anti‑fiber shedding and stable pressure‑drop performance under medium‑high‑flow operating conditions.

Activated‑carbon element can be matched downstream for oil‑vapor and odor removal.

Delivers high‑purity compressed air for painting, electronics, food‑pharmacy and precision pneumatic applications.

Application Industries

Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, packaging‑machine air supply

Product Summary

With 0.01μm high precision, it fits CPFM filter housing and deeply removes ultra‑fine oil‑mist and fine solid contaminants to deliver clean compressed air with residual oil aerosol of 0.01ppm.
