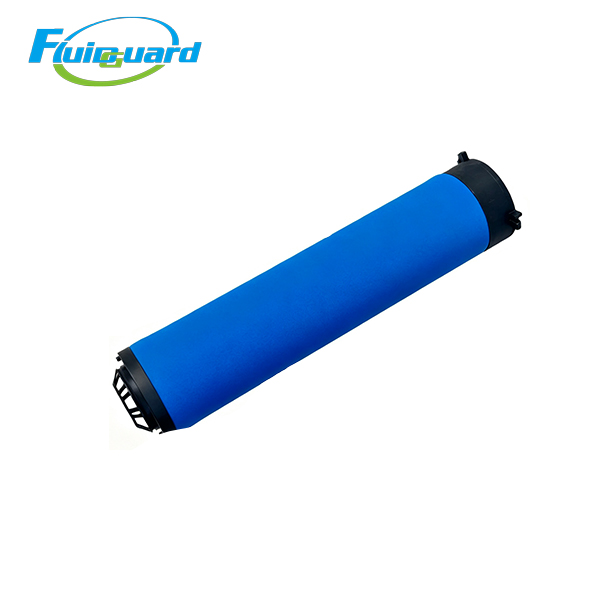

Coalescing Filters

Part No: 2901054200

Filter Grade: PD‑Grade fine coalescing

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.998%

Residual Oil Aerosol: 0.01ppm

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar; standard service interval 8000 hours or 1 year

Filter Media: Imported borosilicate micro‑glass‑fiber depth media with hydrophobic foam drainage sleeve

Main Features

Hydrophobic‑oleophobic depth‑type glass‑fiber media. Condensed condensate drains rapidly to prevent liquid re‑entrainment into downstream pipeline.

Gradient multi‑layer pleated composite media with high dirt‑holding capacity, anti‑fiber shedding and stable pressure‑drop performance under medium‑high‑flow operating conditions.

Deliver high‑clean compressed air for painting, food‑pharmacy, electronics manufacturing, laboratory and precision pneumatic equipment with strict air‑quality requirements.

Application Industries

Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, packaging‑machine air supply

Product Summary

With 0.01μm high precision, it fits 175 filter housing and deeply removes ultra‑fine oil‑mist contaminants to deliver clean compressed air with residual oil aerosol of 0.01ppm.
