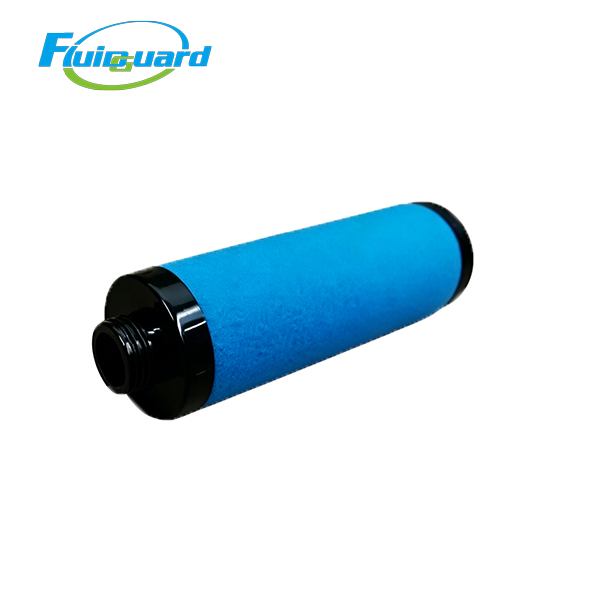

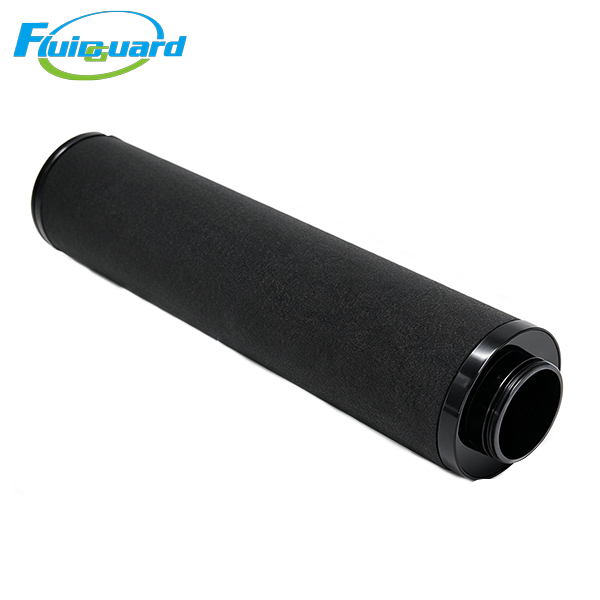

Coalescing Filters

Part No: 2901054100

Filter Grade: DD‑Grade upstream coalescing

Residual Oil Aerosol: 0.1ppm

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ86×382mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar; standard service interval 8000 hours or 1 year

Filter Media: Imported borosilicate micro‑glass‑fiber depth media with hydrophobic foam drainage sleeve

Main Features

Hydrophobic‑oleophobic depth‑type glass‑fiber media. Condensed condensate drains rapidly to prevent liquid re‑entrainment into downstream pipeline.

Gradient multi‑layer pleated composite media with high dirt‑holding capacity, anti‑fiber shedding and stable pressure‑drop performance under medium‑high‑flow operating conditions.

Suitable for pre‑treatment of medium‑high‑flow air‑compressor main‑line, general‑industry air supply and pre‑filtration for painting and pneumatic equipment.

Application Industries

Air‑compressor post‑treatment system, pre‑filtration for painting & coating, automation pneumatic equipment, food packaging, general factory air supply, mechanical‑equipment air‑source purification

Product Summary

With 1μm filtration rating, it fits 175 filter housing and removes particles, condensate and bulk oil mist as pre‑protection filter for medium‑high‑flow compressed‑air system. Direct replacement for original filter element
