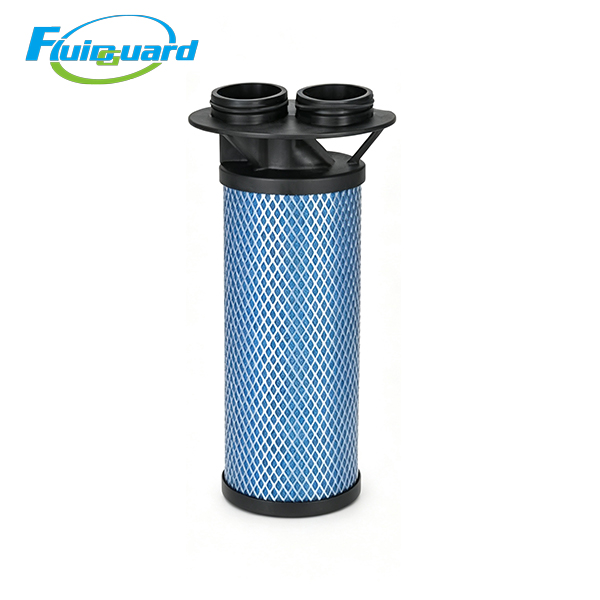

Coalescing Filters

Part No: 1C026796

Core Technical Specifications

Filtration Precision: Solid particles ≥0.01 μm, liquid oil & water aerosols ≥0.01 μm

Filtration Efficiency: 99.999% removal efficiency for 0.01 μm liquid aerosols

Overall Length: 610 mm, Outer Diameter: 86 mm

Standard Replacement Cycle: Replace after 4,000 operating hours or 12 months, whichever comes first

Differential Pressure Service Thresholds

Initial Clean Differential Pressure: ≤0.014 MPa

Mandatory Shutdown Replacement Alarm: ΔP ≥ 0.07 MPa

Sealing & Support Structure

End Caps: Reinforced high-temperature resistant aluminum alloy

Seal: Integrated single-piece Viton FKM fluororubber full sealing gasket, zero air bypass leakage, high heat & oil aging resistance

Inner & Outer Cage: Double-layer 304 stainless steel perforated mesh, anti-deformation under full rated high airflow & high temperature load

Key Product Advantages

It drastically reduces liquid contamination load on SMF ultra-high efficiency and AK activated carbon filter elements, extends their service life and cuts overall system maintenance and spare parts expenditure. Silicone-free media eliminates paint pinhole defects for automotive topcoat painting lines.

High temperature & hydrolysis resistant media for hot compressed air working conditions

Special HTNX heat-resistant glass fiber and Viton sealing system stable under up to 120°C continuous air temperature, suitable for post-compressor hot air direct filtration without pre-cooling. Thick multi-gradient hydrophobic fiber matrix provides massive oil & water storage volume, resisting rapid saturation in factories with insufficient aftercooler performance.

Low flow resistance for energy saving on medium & large compressor stations

Deep-pleated micro glass fiber maximizes effective filtration area, maintaining ultra-stable low pressure drop under 24/7 full-load continuous operation, lowering extra power consumption of medium air compressor units and long-term electricity costs.

Zero fiber shedding & long service life under harsh hot humid airflow

Heat-stabilized oleophobic borosilicate micro glass fiber matched with full stainless steel support cage prevents fiber detachment under long-term high-temperature humid compressed air impact, avoiding secondary pipeline contamination to downstream precision pneumatic valves and processing equipment.

Working Principle

Bulk liquid water and large solid particles are blocked by outer blue hydrophobic foam;

Trace micro oil & water aerosols collide and coalesce into large liquid droplets across multi-layer gradient high-temperature borosilicate micro glass fiber media;

Outer blue anti-re-entrainment foam sleeve stops coalesced liquid droplets from being re-carried by high-speed airflow;

Condensed oil and water drain down to the filter bowl by gravity and automatic drain valve;

Application Industries

Hot air post-compressor direct filtration stations, metal forging & heat treatment workshops, automotive electrostatic painting workshops, multi-line medium laser cutting equipment, pharmaceutical sterile filling production lines, food high-temperature aseptic packaging, PCB manufacturing, medium factory centralized air compressor stations, solvent spraying production lines, full-automatic precision pneumatic automation production lines, front protection filter for medium adsorption dryers.
