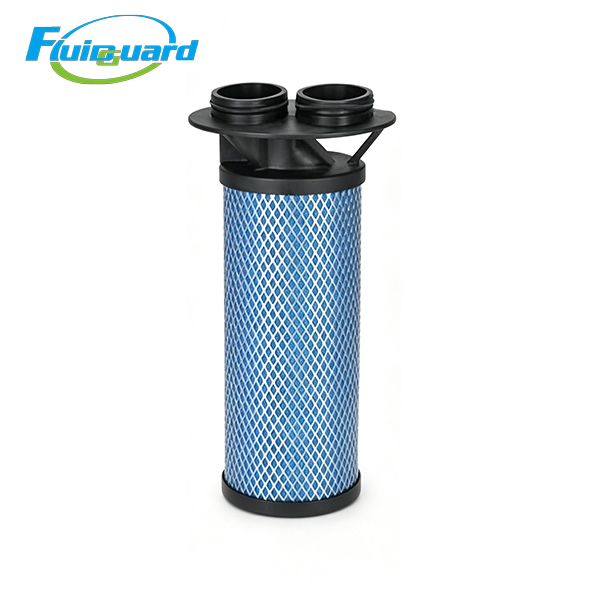

Coalescing Filters

Part No: 1624184404

Core Technical Specifications

Particle Filtration Efficiency: 99.999% removal efficiency for 3μm solid particles

Filter Media: Multi-layer gradient deep-pleated borosilicate glass fiber composite + thick outer white non-woven dust interception fleece

Max Working Pressure: 1.6 MPa

Continuous Operating Temperature: 2°C ~ 80°C

Standard Replacement Cycle: Replace after 4,000 operating hours or 12 months, whichever comes first; extendable to 8,000 hours in low-dust clean workshops

Initial clean differential pressure: ≤0.012 MPa

Mandatory replacement differential pressure: ≥0.07 MPa

Key Product Advantages

First-stage full-system protection to extend service life of downstream high-cost precision filters

As the front pretreatment stage of the entire compressed air purification system, it intercepts most coarse dust and rust contaminants, drastically reducing solid particle load on DD medium coalescer and QD ultra-high efficiency coalescer, cutting replacement frequency and overall factory maintenance expenditure.

Ultra-large dust holding capacity for heavy-dust industrial workshops

Deep-pleated gradient glass fiber matrix provides massive dust storage volume, resisting rapid clogging in machining, forging, sandblasting and other dusty environments, minimizing production downtime caused by frequent filter replacement.

Ultra-low airflow resistance to reduce long-term central compressor station power consumption

Large-area deep-fold filter media optimizes internal air channels, maintaining stable low pressure drop under 24/7 full-load continuous large-volume operation, effectively cutting extra power consumption of large air compressor units and electricity costs.

Hydrolysis & abrasion resistant media without fiber shedding

Hydrolysis-proof borosilicate glass fiber matched with stainless steel support cage prevents fiber shedding under long-term humid high-flow compressed air impact, avoiding secondary pipeline contamination to downstream coalescing media, precision pneumatic valves and spraying equipment.

Working Principle

Raw unpurified compressed air flows outside-in through the filter cartridge:

Air first passes through outer thick white non-woven fabric to trap large coarse solid particles;

All solid particles larger than 3μm are captured and stored inside gradient glass fiber media;

Application Industries

Large metal machining workshops, heavy metal forging plants, sandblasting workshops, textile printing factories, large packaging printing equipment, medium & large factory centralized air compressor stations, construction machinery air supply systems, full-automatic large pneumatic automation production lines, low-demand food packaging equipment.
