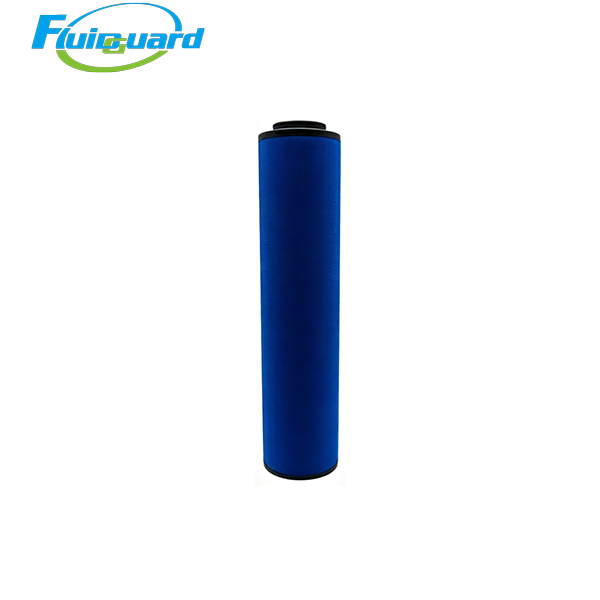

Coalescing Filters

Part No: 1617704303

Filter Media: High‑efficiency borosilicate glass fiber

Filtration Rating: 0.1 μm solid particle removal

Residual oil content: ≤0.1 mg/m³ at 20℃

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 2.28 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently intercepts fine solid particles, ultrafine oil aerosols and liquid water droplets in compressed air.

Optimized deep‑pleated structure provides large filtration area and maintains low pressure drop during long‑term continuous operation.

Thread‑in cartridge structure for quick‑change on‑site maintenance. Reliable double‑seal‑ring structure prevents air‑bypass secondary contamination.

Excellent hydrophobic‑oleophobic performance promotes liquid draining and reduces secondary liquid carry‑over risk.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, pneumatic automation, painting workshops, food & beverage, electronics, pharmaceutical, chemical processing and other industrial sectors.
