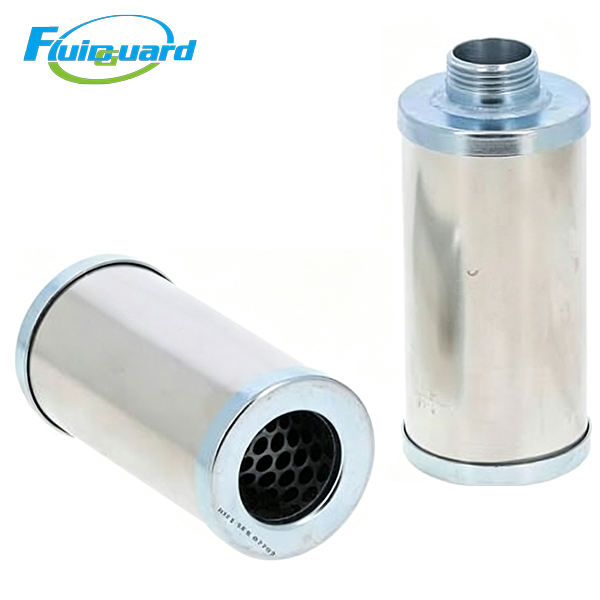

Coalescing Filters

Part No: 1C900919

Filter Media: High‑efficiency borosilicate glass fiber composite

Filtration Rating: 0.01 μm solid particle removal

Residual oil content: ≤0.003 mg/m³ at 20℃

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 0.75 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently intercepts ultrafine solid particles, ultrafine oil aerosols and liquid water droplets in compressed air.

Optimized deep‑pleated structure provides large filtration area and maintains low pressure drop during long‑term continuous operation.

Reliable double O‑ring sealing structure ensures tight sealing inside filter housing and effectively prevents air‑bypass secondary contamination.

Excellent hydrophobic‑oleophobic performance promotes liquid draining and reduces liquid re‑entrainment risk.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in food & beverage, pharmaceutical, electronic manufacturing, machinery manufacturing, laboratory equipment, painting workshops and other industrial sectors.
