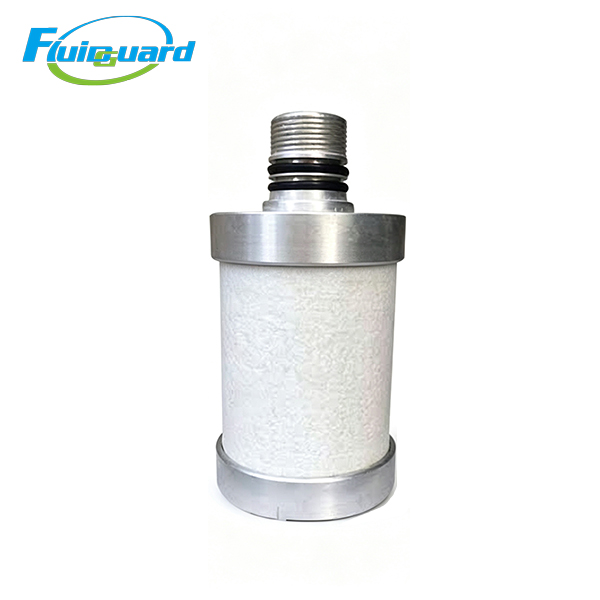

Coalescing Filters

Part No: 13020371

Filter Media: High‑efficiency borosilicate glass fiber composite material

Filtration Rating: 0.1 μm solid particle removal

Residual oil content: ≤0.1 mg/m³ at 20℃

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 1.05 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently intercepts fine solid particles, ultrafine oil aerosols and liquid water droplets in compressed air.

Optimized deep‑pleated structure provides large filtration area and maintains low pressure drop during long‑term continuous operation.

Thread‑on installation structure for quick‑change on‑site maintenance. Reliable double O‑ring sealing prevents air‑bypass secondary contamination.

Excellent hydrophobic‑oleophobic performance promotes liquid draining and reduces liquid re‑entrainment risk.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, food & beverage, electronics, painting workshops, pharmaceutical, chemical processing and other industrial sectors.
