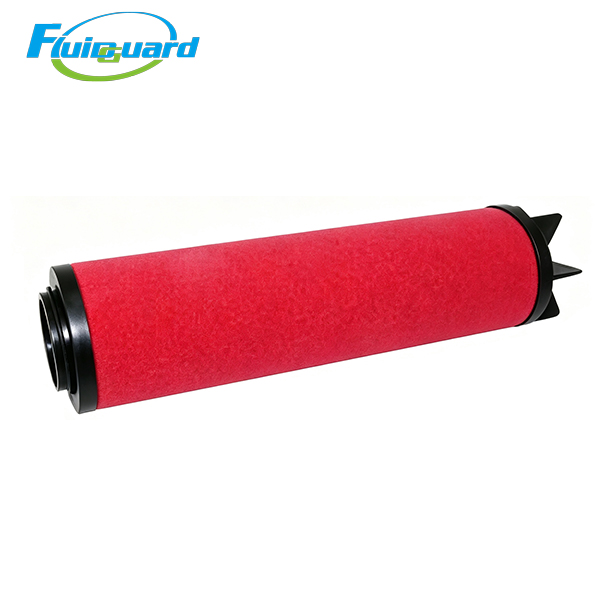

Coalescing Filters

Part No: SM9342

Filter Media: High‑efficiency borosilicate glass fiber composite

Filtration Rating: 1 μm solid particle removal

Residual oil content: ≤1 mg/m³ at 20℃

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 1.40 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently intercepts solid particles, pipeline rust, dust, oil aerosols and liquid water droplets in compressed air.

Optimized deep‑pleated structure provides large filtration area and maintains low pressure drop during long‑time continuous operation.

Thread‑type quick‑install structure for convenient on‑site replacement. Reliable double‑ring sealing prevents air‑bypass secondary contamination.

Excellent hydrophobic‑oleophobic performance promotes liquid draining and reduces liquid re‑entrainment risk.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, pneumatic automation, painting workshops, food & beverage, chemical processing and other industrial sectors.
