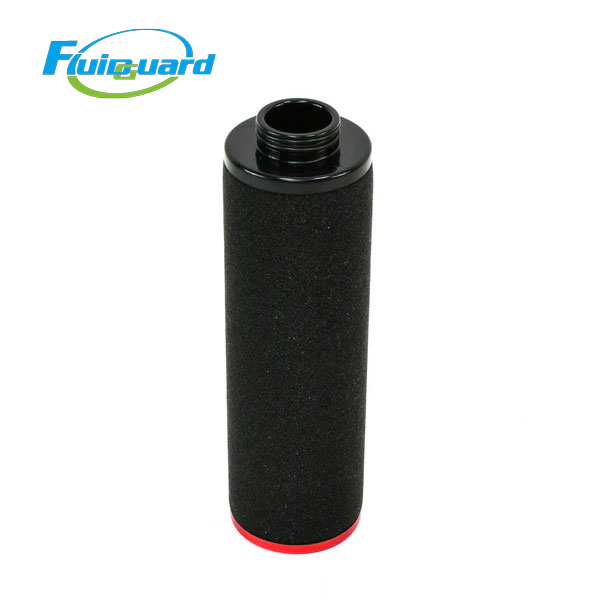

Coalescing Filters

Part No: 2901300007

Filter Grade: PD‑Grade

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.998%

Residual Oil Aerosol: 0.01ppm

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ82×285mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar; standard service interval 8000 hours or 1 year

Filter Media: Imported borosilicate micro‑glass‑fiber depth media with hydrophobic foam drainage sleeve

Main Features

PD‑grade high‑efficiency coalescing element, deeply removes sub‑micron oil‑mist aerosol, liquid water and fine solid particulates, complies with ISO8573‑1 and ISO12500‑3 compressed‑air test standards.

Hydrophobic‑oleophobic depth‑type glass‑fiber media. Condensed condensate drains rapidly to prevent liquid re‑entrainment into downstream pipeline.

Gradient multi‑layer pleated composite media with high dirt‑holding capacity, anti‑fiber shedding and stable pressure‑drop performance during long‑term continuous‑run operation.

Deliver high‑clean compressed air for painting, food‑pharmacy, electronics manufacturing, laboratory and precision pneumatic equipment with strict air‑quality requirements.

Application Industries

Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, packaging‑machine air supply

Product Summary

With 0.01μm high precision, it fits PD filter housing and deeply removes ultra‑fine oil‑mist contaminants to deliver clean compressed air with residual oil aerosol of 0.01ppm. Direct replacement for original filter element
