Coalescing Filters

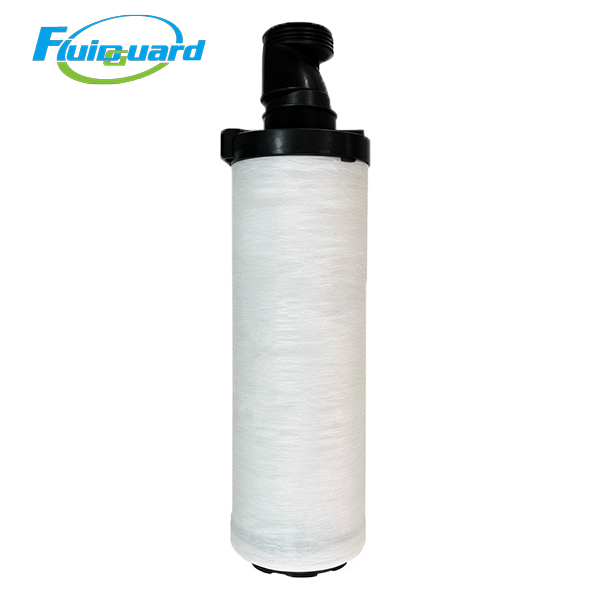

Model: 060AR

Core Technical Specifications

Filter Grade: AR Primary General Coalescing Pre-Filtration

Filtration Precision: 1 μm solid particles, bulk condensed water & large liquid oil droplets

Residual Oil Aerosol at Outlet: ≤0.5 mg/m³ (0.5 ppm) under rated airflow at 21°C

Filter Media: Multi-layer gradient borosilicate micro glass fiber composite with permanent hydrophobic & oleophobic coating

Rated Airflow Capacity: 60 m³/min @ 7 bar(g) reference pressure

Max Working Pressure: 16 bar / 232 PSIG

Max Continuous Operating Temperature: ≤66℃

Airflow Direction: Outside-to-Inside

Seal Structure: Integrated black twist-lock plastic top connector with full-perimeter NBR nitrile O-ring seal

Key Product Features

Low Initial Differential Pressure & Energy Saving

Unique deep-pleated glass fiber media maximizes effective filtration area and optimizes internal airflow channels to eliminate turbulence. Stable low pressure loss is maintained under 24/7 full-load continuous operation, cutting extra power consumption of air compressors and lowering long-term factory air supply costs.

Ultra-Large Dirt & Liquid Holding Capacity

Multi-gradient depth filtration matrix stores large volume of separated lubricant oil, condensed water and solid sludge. Maintenance intervals are significantly prolonged to minimize costly production downtime caused by frequent element replacement.

Heavy-Duty Stainless Steel Reinforced Support Cage

Dual stainless steel mesh cages withstand violent high-speed turbulent airflow inside filter housing, preventing media bulging, rupture and fiber shedding to eliminate secondary contamination of clean compressed air.

Working Principle

Raw unpurified compressed air flows into the cartridge from the outer stainless steel protective mesh. The outer coarse fiber layer traps large solid particles, liquid water and bulky oil droplets. Coarse oil mist is coalesced into heavy liquid condensate, which sinks to the filter housing bottom and drains automatically via the built-in float drain. Primarily purified compressed air flows forward to 060AA high-efficiency coalescing filter for further trace oil mist removal.

Application & Industries

First-stage protective pre-filter for medium-flow industrial compressed air post-processing systems, installed upstream of high-efficiency coalescing filters and refrigerated air dryers.

Widely applied in machinery manufacturing, automotive workshops, packaging printing factories, textile plants, industrial spray coating, pneumatic tool stations, food primary processing, laser cutting and factory centralized compressed air supply stations.
