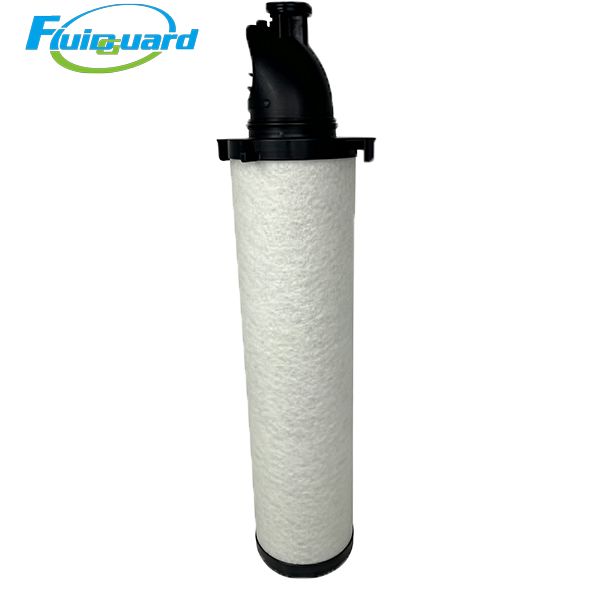

Coalescing Filters

Model: 060AA

Core Technical Specifications

Filtration Precision: 0.01 μm submicron oil mist, micro water droplets & fine solid particles

Residual Oil Aerosol at Outlet: ≤0.01 mg/m³ (0.01 ppm) @ 21°C rated airflow

Filter Media: Multi-layer gradient borosilicate micro glass fiber, permanent hydrophobic & oleophobic coating, 96% void volume deep-pleated media

Max Continuous Operating Temperature: ≤66℃

Airflow Direction: Outside-to-Inside

Key Product Features

Dual-Function Ultra-Fine Contaminant Removal

Must be installed downstream of 060AO / 060AR grade coarse pre-filter. This white glass fiber cartridge captures invisible 0.01μm submicron oil mist, micro condensed water and fine pipeline dust that 1μm general filters cannot intercept. It delivers near oil-free dry compressed air and greatly reduces contamination load to extend service life of downstream 060ACS activated carbon vapor removal elements.

Low Initial Differential Pressure & Energy Saving

Exclusive deep-bed pleating technology maximizes effective filtration area and optimizes internal airflow channels to eliminate turbulence, maintaining stable low pressure loss under 24/7 full-load continuous operation. It cuts extra power consumption of air compressors and lowers long-term factory air supply operating costs.

Large Dirt & Liquid Holding Capacity

Thick gradient depth fiber matrix stores massive coalesced lubricant oil, condensed water and metal wear sludge, significantly extending maintenance intervals and minimizing production downtime caused by frequent element replacement.

Heavy-Duty Stainless Steel Reinforcement Cage

Dual stainless steel mesh cages withstand violent high-speed turbulent airflow inside filter housing, preventing media bulging, rupture and fiber shedding to avoid secondary contamination of downstream precision terminal equipment.

OEM Direct Twist-Lock Interchangeability

Twist-lock top structure fully matches genuine Parker Domnick Hunter 060 series filter housings. Integrated full-face rubber seal eliminates air bypass leakage under frequent system pressure fluctuations; plug-and-play direct replacement without housing modification.

Working Principle

Compressed air pre-treated by 060AO coarse filter enters the cartridge from the outer stainless steel protective mesh. Multi-layer ultra-fine glass fiber medium intercepts 0.01μm oil mist aerosols and solid particles. Tiny oil droplets continuously collide and aggregate into large liquid oil beads, flow down cartridge inner wall by gravity and drain automatically via housing float drain port. Ultra-clean low-residual-oil compressed air flows forward to optional 060ACS activated carbon filter for oil vapor removal.

Application & Industries

Core precision polishing filter for medium-flow industrial compressed air post-processing systems, installed between general coalescing pre-filters and activated carbon filters.

Widely applied in pharmaceutical aseptic manufacturing, food sterile packaging, precision electronic assembly, medical & dental equipment, optical coating, laboratory instruments, automotive electrostatic topcoat spraying, laser cutting and centralized factory compressed air supply stations requiring Class 1 ultra-clean oil-free compressed air.
