Coalescing Filters

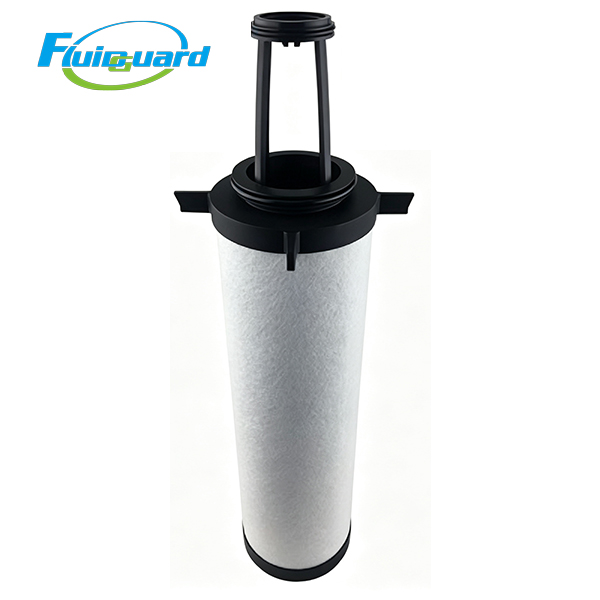

Model: FE130M

Core Technical Specifications

Filter Grade: M High-efficiency coalescing precision filtration

Filtration Precision: 0.01 μm submicron oil mist, micro water droplets & solid fine particles

Filter Media: Multi-layer gradient imported borosilicate glass fiber composite with permanent hydrophobic & oleophobic coating

Rated Airflow Capacity: 130 m³/min

Max Working Pressure: 16 bar / 232 PSIG

Max Continuous Operating Temperature: ≤80℃

Airflow Direction: Outside-to-Inside

Key Product Features

Ultra-Fine Submicron Oil Mist Deep Removal

Must be installed downstream of FE130P (P Grade 1μm pre-filter). This white coalescing cartridge captures invisible trace submicron oil aerosols and tiny residual condensed water droplets that coarse pre-filters cannot fully intercept. It delivers nearly oil-free compressed air and drastically reduces contaminant load to extend the service life of downstream FE130A activated carbon elements.

Low Initial Differential Pressure & Energy Saving

Deep-pleated proprietary glass fiber media maximizes effective filtration surface area. Optimized smooth internal flow channels eliminate air turbulence, maintaining stable low airflow resistance under 24/7 full-load continuous operation, cutting extra power consumption of air compressors and long-term factory operating costs.

Large Dirt & Oil Holding Capacity

Thick gradient glass fiber matrix stores massive coalesced lubricant oil, condensed water and metal wear debris, greatly extending maintenance intervals and minimizing production downtime during element replacement.

Heavy-Duty Anti-Deformation Reinforcement Cage

Dual metal mesh cages withstand violent high-speed turbulent airflow inside filter housing, preventing media bulging, rupture and fiber shedding to eliminate secondary contamination of downstream precision terminal equipment.

Working Principle

Raw compressed air pre-treated by FE130P coarse filter enters the cartridge from the outer metal protective mesh. Multi-layer ultra-fine glass fiber medium intercepts 0.01μm oil mist aerosols and solid particles. Tiny oil droplets continuously collide, aggregate into large liquid oil beads, flow down cartridge inner wall by gravity and drain automatically via housing drain port. Ultra-clean low-residual-oil compressed air flows forward to optional FE130A activated carbon filter for oil vapor removal.

Application & Industries

Core precision polishing filter for medium-flow industrial compressed air post-processing systems, installed between general coalescing pre-filters and activated carbon filters.

Widely applied in pharmaceutical aseptic manufacturing, food sterile packaging, precision electronic assembly, medical equipment processing, optical coating, laboratory analytical instruments, automotive electrostatic topcoat spraying, laser cutting and factory centralized compressed air supply stations requiring Class 1 ultra-clean oil-free compressed air.
