Air Filters

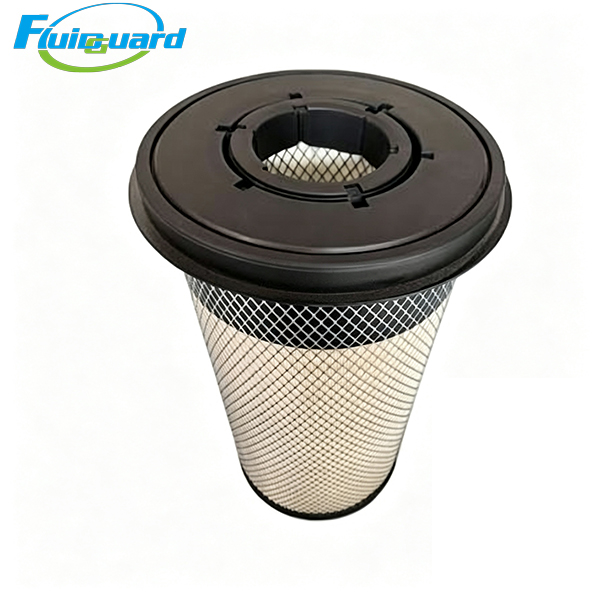

Model: P60-8116

Core Technical Specifications

Filtration Precision: Intercept solid dust, sand, construction debris ≥2μm

Filtration Efficiency: 99.9% dust removal rate per ISO 5011 test standard

Filter Media: High-density full-adhesive composite filter paper, optional nanofiber coated for ultra-dust retention

Exact Dimensions

Outer Diameter: 310 mm

Inner Diameter: 243 mm

Overall Length: 518 mm

Max Working Temperature: -20℃ ~ 100℃

Standard Service Life: 40,000–60,000 km / 2000–4000 working hours; replace when intake differential pressure exceeds 0.05 MPa

Initial Differential Pressure: ≤0.01 MPa

Sealing Structure: Integrated full-circumference PU rubber end cap, leak-proof tight fit against air cleaner housing

Key Product Advantages

Two-stage dust blocking protects engine core components

Matched with inner safety filter P608391, this primary outer filter traps over 95% of coarse construction dust, sand and mud particles in advance. It drastically reduces abrasion on engine cylinder, piston and turbocharger, extending engine overhaul cycle.

Low air intake resistance for fuel saving

Uniform deep-pleated large filtration area optimizes airflow intake. Stable low pressure loss under full-load operation, reduces engine intake resistance and cuts fuel consumption.

Super large dust holding capacity for harsh construction sites

Thick gradient filter paper matrix stores massive dry dust contaminants, resists rapid clogging in mining, quarry, road construction dusty environments, lengthening maintenance intervals.

Reinforced vibration-resistant heavy-duty construction

Corrosion-resistant galvanized mesh and elastic PU end caps withstand continuous machine vibration, bumpy road conditions and temperature fluctuation. Prevent media tearing, dust bypass and secondary engine contamination.

Working Principle

Ambient air mixed with construction dust, sand and debris flows from outside into the pleated composite filter paper. All coarse solid particles are trapped and stored inside the filter media. Purified air passes through inner safety filter then enters engine combustion chamber, ensuring clean air supply for turbo and cylinder.

Application Industries

widely applied in:

Excavators, telehandlers, boom lifts, wheel loaders, mining trucks, agricultural tractors, highway engineering vehicles, port heavy-duty transport trucks.
