Air Filters

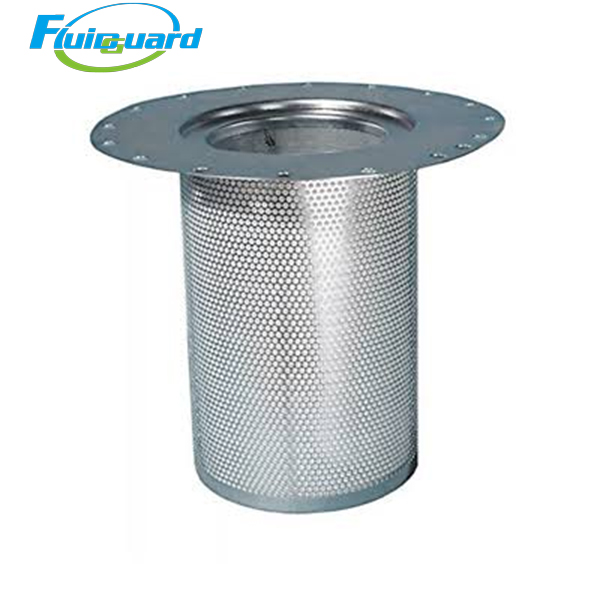

Model: 1623801200

Core Technical Specifications

Separation Precision: 0.01 μm micro lubricant oil mist

Residual Oil Content of Outlet Compressed Air: ≤3 ppm

Separation Efficiency: 99.99%

Filter Media: Multi-layer gradient HV borosilicate glass fiber composite, anti-static, high temperature resistant & anti-oil saturation

Max Working Pressure: 16 bar / 232 PSIG

Continuous Operating Temperature: ≤110℃

Standard Service Life: 4,000–6,000 operating hours; mandatory replacement when differential pressure exceeds 0.8 bar

Initial Differential Pressure: ≤0.02 MPa

Key Product Advantages

Two-Stage Gradient Coalescence to Cut Oil Consumption

Multi-layer gradient glass fiber medium captures submicron oil mist generated by screw rotor compression. Agglomerated liquid lubricant oil flows back to the compressor oil tank through the central oil return tube, effectively reducing oil consumption and stabilizing the cleanliness of downstream compressed air.

Low Initial Differential Pressure for Energy Saving

Large deep-pleated filtration area optimizes internal oil-gas flow channels to minimize pressure loss. Avoids increased motor load and extra power consumption caused by clogged separator core, lowering long-term factory power costs.

Large Oil Holding Capacity & Anti-Saturation Performance

Thick gradient fiber matrix stores massive coalesced lubricant oil, resists blockage from high-temperature aging oil and carbon sludge, suitable for 24-hour continuous full-load industrial operation.

High-Temperature Anti-Corrosion Reinforced Structure

Galvanized protective mesh and high-temperature composite sealing gasket withstand long-term high-temperature oil-gas mixed environment. Effectively prevents filter medium rupture and fiber shedding to avoid secondary oil contamination of pipeline precision filters and terminal production equipment.

Working Principle

High-temperature high-pressure oil-gas mixture discharged from the screw rotor penetrates the glass fiber filter medium from outside to inside of the separator core. Submicron oil mist particles collide and aggregate into large liquid oil droplets on the fiber surface. Oil sinks to the bottom of the separator by gravity and flows back to the compressor lubricating oil tank through the central oil return pipe; low-oil clean compressed air flows out to refrigerated dryer and pipeline precision filter system.

Application & Industries

Widely applied in automotive manufacturing, packaging printing, textile factories, electrostatic spraying workshops, food sterile packaging, laser cutting equipment, pharmaceutical clean workshops and centralized factory compressed air supply stations.
