Air Filters

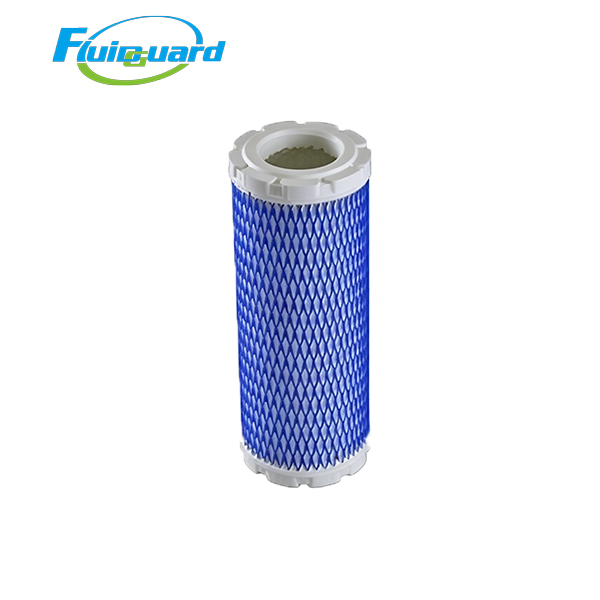

Part Number: 6C10-050

Filtration Performance:

Absolute solid particle retention ≥0.01 μm

Residual liquid oil mist ≤0.01 ppm

Filtration efficiency: 99.999% for 0.01μm contaminants

Core Function: Third-stage high-precision coalescing purification; intercept submicron oil aerosols, ultra-fine dust and residual condensed water, greatly reduce oil load for downstream activated carbon filter

Standard Service Life: 4,000 working hours or 12 months

Max Operating Pressure: 1.6 MPa

Max Operating Temperature: 79°C

Physical Dimensions: Total height 5 inch, top OD 1.3 inch, inner diameter 1 inch, no integrated end sealing ring

Application Scenarios

Small automotive component spray booth pretreatment, laboratory precision analytical instruments, electronic micro-assembly cleanroom equipment, miniature medical pneumatic actuators, optical lens small-batch polishing, cosmetic small sterile filling lines, precision CNC machine air supply, lithium battery pilot workshop auxiliary air

Product Features

Multi-gradient borosilicate microglass depth media achieves ultra-high interception efficiency for invisible submicron oil mist; outer hydrophobic foam automatically drains separated condensate and oil to avoid secondary re-entrainment into compressed air, maintaining stable ultra-low residual oil output.

Low-resistance pleated media design minimizes pressure drop during continuous operation, reducing extra power consumption of small-flow air compressors.

Rigid epoxy-saturated inner support cage + outer protective synthetic mesh, excellent anti-vibration performance; filter media will not deform or collapse under long-term steady airflow impact.

Product Description

Upstream P10/C10 grade filters only remove coarse dust, bulk condensed water and large oil droplets, while this 6C10 ultra-fine element captures micro oil aerosols that penetrate medium-stage filtration. It supplies ultra-clean compressed air for high-sensitivity precision equipment and effectively extends the service life of downstream carbon filter element, lowering overall air treatment system maintenance costs.
