Air Filters

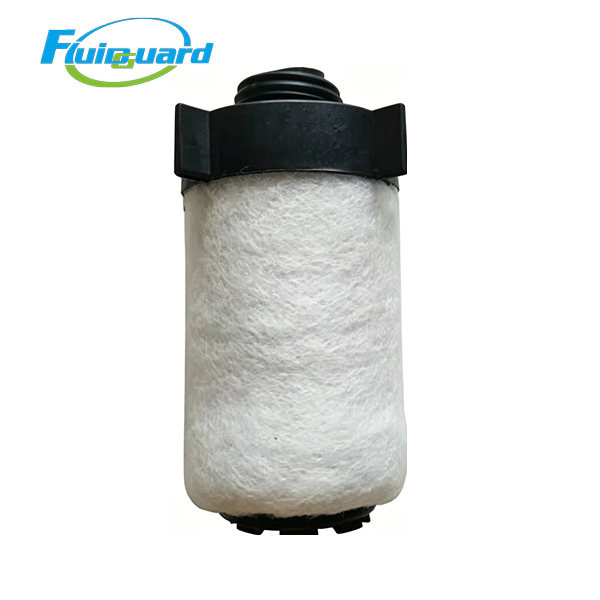

Part Number: 85565513

Filtration Performance:

Absolute solid particle retention ≥0.01 μm

Max residual liquid oil mist ≤0.008 ppm

Core Function: Third-stage ultra-precision coalescing purification after medium grade filter; captures invisible submicron oil aerosols, ultra-fine dust and residual condensate water, drastically reduce oil adsorption load of downstream activated carbon filter

Standard Service Life: 4,000 working hours or 12 months

Max Operating Pressure: 1.6 MPa

Initial Pressure Drop: ≤0.012 MPa

Replacement Alarm Differential Pressure: ≥0.06 MPa

Application Scenarios

Medium automotive component spray booth pretreatment, electronic & semiconductor small cleanroom production, precision medical equipment auxiliary air supply, small food aseptic filling lines, lithium battery laboratory pilot workshop air supply, optical lens small batch polishing, laboratory medium-flow precision analytical instruments, cosmetic small-scale sterile filling equipment

Product Features

High-efficiency multi-gradient microglass depth media achieves 99.999% interception efficiency for 0.01 μm micro oil aerosols; outer hydrophobic foam automatically drains separated oil and condensate water to avoid secondary re-entrainment into compressed air, maintaining stable ultra-low residual oil performance for long-term continuous operation.

Compact deep-pleated low-resistance media layout stabilizes low differential pressure during operation, cutting extra power consumption of medium-flow air compressors and reducing overall system operating costs.

Reinforced plastic end caps + built-in corrosion-resistant plastic support cage, outstanding anti-vibration & shock resistance; filter media will not deform, sag or collapse under long-term steady airflow impact.

Integrated NBR rubber sealing ring, resistant to high temperature and synthetic compressor lubricant oil, completely eliminating pipeline compressed air leakage risks.

Product Description

Upstream IP and IMA grade filters only remove coarse dust, bulk condensed water and medium oil droplets, while this IHE ultra-fine element intercepts invisible submicron oil mist that penetrates medium-stage filtration. It delivers ultra-high cleanliness compressed air for high-standard precision industrial processes and significantly reduces the oil adsorption burden of downstream carbon filter, extending carbon element service life and lowering overall air treatment system maintenance costs.
