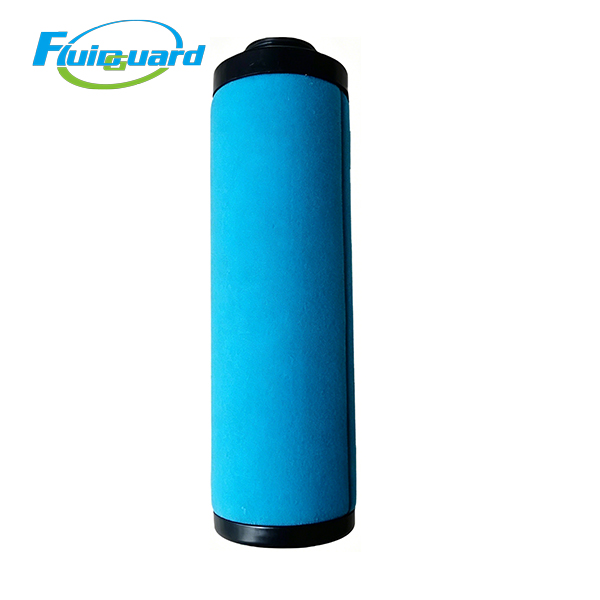

Air Filters

Part Number: 1624183006

Filtration Performance:

Absolute solid particle retention ≥1 μm

Residual liquid oil mist ≤1 ppm

Standard Service Life: 5,000 working hours

Max Operating Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.008 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Application Scenarios

Medium-sized factory central pneumatic air supply, machinery processing & foundry workshops, front protection for medium refrigerated air dryers, medium automotive spray booth pretreatment, lithium battery workshop auxiliary air supply, food & beverage packaging lines, laboratory medium-flow precision analytical instruments

Product Features

Outer hydrophobic foam drainage sleeve automatically drains separated liquid condensate and oil, effectively preventing secondary oil & water re-entrainment into compressed air and improving gas-liquid separation efficiency. High dirt-holding capacity gradient glass fiber media captures most coarse pollutants to slow clogging of downstream high-precision filter elements.

Medium-size deep-pleated ultra-low initial pressure drop design minimizes continuous energy loss and power consumption of medium-flow air compressors.

Epoxy fully sealed composite end caps + corrosion-resistant plastic inner support cage, excellent anti-vibration and shock resistance; filter media will not deform or collapse under long-term dusty airflow impact.

Integrated single EPDM rubber top O-ring sealing structure, resistant to high temperature and synthetic compressor lubricant oil, completely eliminates pipeline compressed air leakage risks.

Product Description

It removes large pipeline rust, coarse sand dust, bulk condensed free water and large oil droplets from raw compressed air, effectively extending the service life of secondary coalescing, superfine and activated carbon filter elements, lowering overall maintenance frequency and operating cost of the whole medium air supply system.
