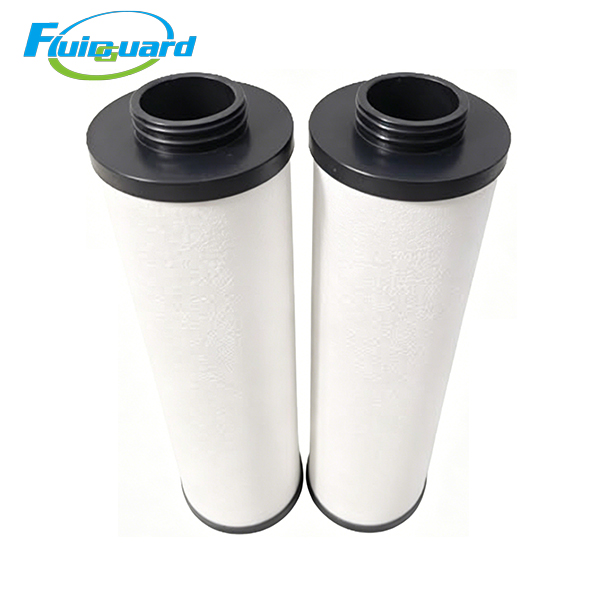

Air Filters

Part Number: 4CU15-095

Standard Service Life: 4,000 working hours; shorten to 2,000 hours under heavy oil mist, high humidity and spray booth environments

Max Operating Pressure: 1.6 MPa

Continuous Operating Temperature: 2℃ ~ 120℃

Initial Pressure Drop: ≤0.01 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Overall Dimensions:

Outer Diameter: 56.5 mm

Inner Connection Diameter: 31.5 mm

Total Height: 241 mm

Application Scenarios

General industrial pneumatic tools, small spray booths, food packaging equipment, workshop laser cutting, general mechanical processing, pre-protection for refrigerated air dryers, auxiliary air supply for standard laboratory instruments

Product Features

Multi-gradient borosilicate microglass media delivers stable coalescing performance, intercepting 99.99% of 0.6μm solid contaminants and most liquid oil mist; outer hydrophobic foam automatically drains separated water & oil to avoid secondary air entrainment.

Deep-pleated low-resistance structure maintains stable low pressure drop through full service cycle, cutting extra power consumption of air compressors.

Integral urethane sealed end caps + plastic inner support cage, excellent anti-vibration performance; filter media will not deform under continuous medium airflow impact.

Product Description

It stabilizes outlet residual oil below 0.02 ppm, provides medium-cleanliness compressed air for general industrial processes, and significantly extends the service life of downstream high-precision QU filter.
