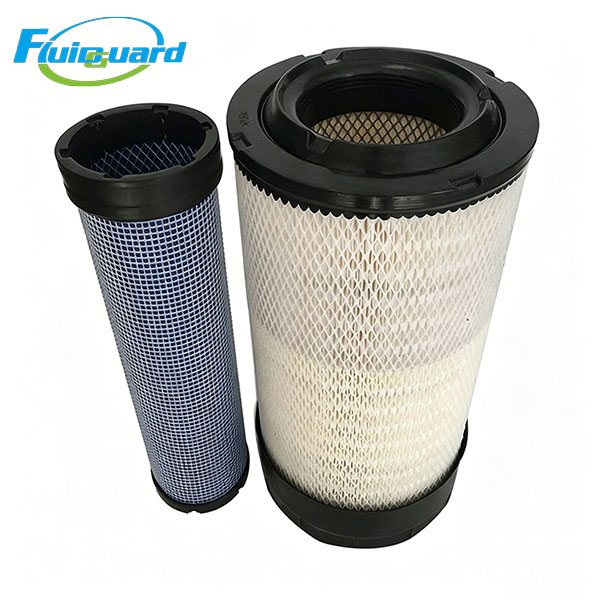

3222188132 Air Filter

Model : 3222188132

Type : Air Filters

Replacement for : 3222188132

Height : 480 mm

It adopts high-grade synthetic fiber imported wood pulp composite media with precise pleating, offering large dust holding capacity and stable low pressure drop. The robust metal inner and outer support cages prevent media deformation under high airflow. Equipped with high-elastic polyurethane (PU)

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 3222188132

Product Name: Air Filter Element

Dimensions

Outer Diameter: 280 mm

Inner Diameter: 175 mm

Height: 480 mm

Weight: 3.8 kg

Specifications & Features

Filter Media: Synthetic fiber & wood pulp composite

Filtration Accuracy: 5–10 μm

Filtration Efficiency: ≥98.5%

Dust Holding Capacity: Ultra-high

Initial Pressure Drop: ≤0.02 MPa

End Cap: PU rubber, leak-proof, anti-aging

Structure: Double metal mesh, anti-deformation

Operating Temperature: -10°C to +85°C

Service Life: 2000–3000 hours

Quality Standard: ISO 9001 certified production

Function

Removes dust, sand, moisture, and fine particles from intake air. Protects compressor rotors, bearings, and engine cylinders from abrasive wear. Reduces oil contamination, extends the service life of oil filters and lubricants. Maintains stable intake airflow and pressure for efficient, continuous operation.
