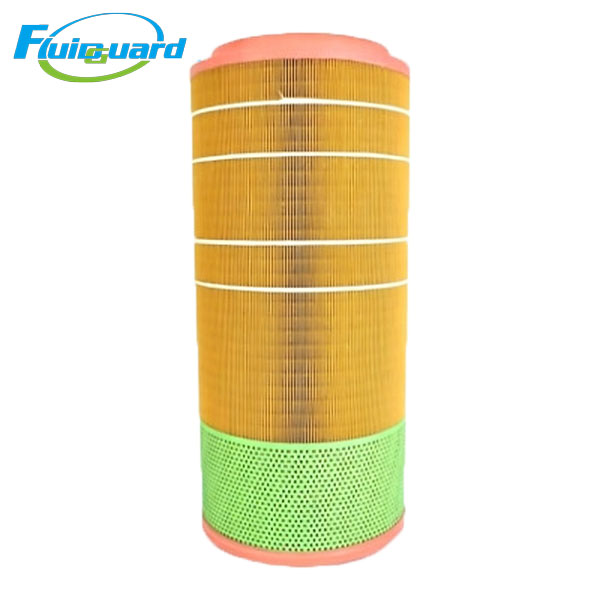

ZS1088236 Air Filter

Model : ZS1088236

Type : Air Filters

Replacement for : ZS1088236

Height : 540 mm

It adopts multi-layer high-grade cellulose-synthetic blended filter media with precise pleating technology, offering large dust holding capacity and stable low pressure drop. The robust metal inner and outer support cages prevent media deformation under high airflow velocity. Equipped with high-perf

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: ZS1088236

Product Name: Air Filter Element

Dimensions

Outer Diameter: 270 mm

Inner Diameter: 172 mm

Height: 540 mm

Weight: 3.4 kg

Specifications & Features

Filter Media: High-efficiency cellulose/synthetic blended media

Filtration Accuracy: 5–8 μm

Filtration Efficiency: ≥99%

Dust Holding Capacity: Ultra-high

Initial Pressure Drop: ≤0.018 MPa

End Cap: PU rubber, leak-proof, anti-aging

Structure: Double metal mesh, anti-deformation, reinforced

Operating Temperature: -10°C to +90°C

Service Life: 2500–3500 hours

Quality Standard: ISO 9001 certified production

Function

Removes dust, sand, moisture, and fine oil mist from raw intake air. Protects compressor rotors, bearings, and other precision parts from abrasive wear. Reduces lubricant contamination, extends the service life of oil filters, oil separators, and lubricants. Maintains stable intake airflow and pressure, ensuring the compressor runs efficiently, continuously, and reliably.
