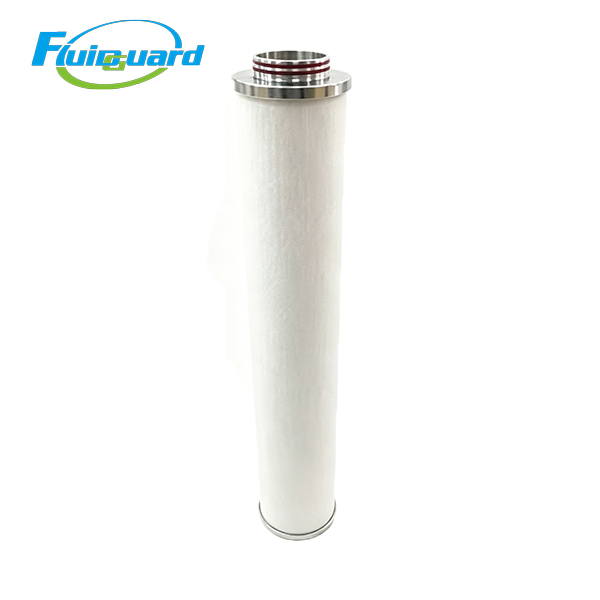

23509268 Air Filter

Model : 23509268

Type : Air Filters

Replacement for : 23509268

It is made of multi-layer composite micro glass fiber and reinforced perforated metal inner support cage, with integrated epoxy full sealing technology. During compressor running, it coalesces suspended oil aerosol in compressed air thoroughly, recovers lubricating oil back to the oil tank for recyc

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Model No: 23509268

Filter Media: Borosilicate composite micro glass fiber

Max Working Temperature: ≤120℃

Standard Service Life: 3500–6000h

Outlet Residual Oil Content: ≤3PPM

Structure: Flanged air oil separator with metal inner support

Product Features

High coalescing efficiency, outlet residual oil ≤3PPM, meets industrial clean compressed air standard

Deep pleated structure maximizes filter area, strong dirt holding capacity, service life 3500–6000 working hours

Thickened metal inner cage provides high compressive strength, no collapse or deformation under high airflow

Media resists high temperature and lubricant corrosion, no fiber shedding to prevent secondary air pollution

Optimized flow channel keeps ultra-low initial pressure drop, saves compressor power consumption

Full epoxy sealing eliminates air bypass leakage; matched sealing gasket ensures tight fit

Wide temperature tolerance up to 120℃, stable performance under long-hour continuous load

Application Scope

Widely used in machinery processing, auto manufacturing, spraying workshops, electronics production, food & beverage, chemical plants, textile factories
