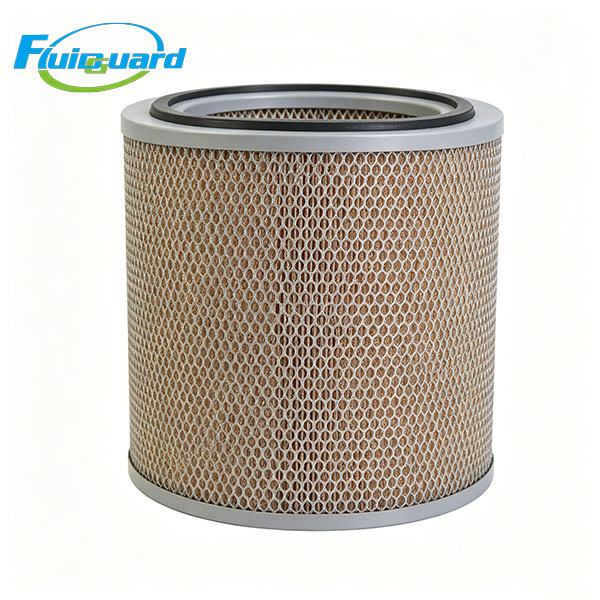

2116040183 Air Filter

Model : 2116040183

Type : Air Filters

Replacement for : 2116040183

Height : 450 mm

It adopts imported organic wood pulp filter media with deep pollution absorption and high filtration efficiency. The pleated design provides large dust-holding capacity and stable low pressure drop. Reinforced metal inner and outer support cages prevent media deformation under high airflow. High-ela

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 2116040183

Product Name: Air Filter Element

Dimensions

Outer Diameter: 220 mm

Inner Diameter: 130 mm

Height: 450 mm

Weight: 2.1 kg

Specifications & Features

Filter Media: Imported organic wood pulp filter paper

Filtration Accuracy: 5 μm

Filtration Efficiency: ≥99.5%

Dust Holding Capacity: High

Initial Pressure Drop: ≤0.018 MPa

End Cap: PU rubber, leak-proof and anti-aging

Structure: Double metal mesh support, anti-deformation

Operating Temperature: -10°C to +85°C

Service Life: 2000 hours under normal conditions

Quality Standard: ISO 9001 certified production

Function

Traps dust, sand, moisture, and fine oil mist in intake air. Protects compressor rotors, bearings, and engine cylinders from abrasive wear. Reduces lubricant contamination and extends the service life of oil filters, oil separators, and lubricants. Maintains stable intake airflow and pressure to ensure efficient, continuous operation of the compressor.
