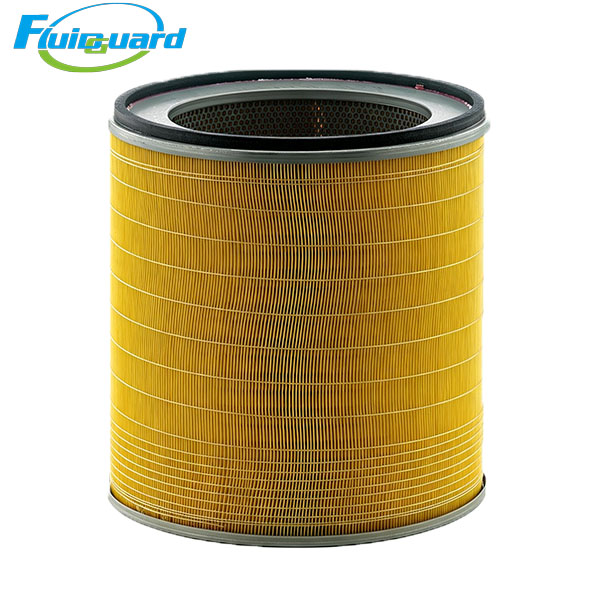

C36840/3 Air Filter

Model : C36840/3

Type : Air Filters

Replacement for : C36840/3

Height : 840 mm

C36840/3 is a high-performance industrial air filter element widely used for air compressors and heavy equipment. It uses premium imported pleated filter media with optimized folding design, featuring excellent dust holding capacity and low airflow resistance. Reinforced double metal mesh structure

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: C36840/3

Product Name: Air Filter Element

Dimensions

Outer Diameter: 360 mm

Inner Diameter: 210 mm

Height: 840 mm

Weight: 6.5 kg

Specifications & Features

Filter Media: High-efficiency cellulose filter paper

Filtration Accuracy: 5–10 μm

Filtration Efficiency: ≥98%

Initial Pressure Drop: ≤0.02 MPa

End Cap: PU rubber, leak-proof and anti-aging

Structure: Double metal mesh support, anti-deformation

Operating Temperature: -10°C to +90°C

Service Life: 2500–3500 hours under normal working conditions

Quality Standard: ISO 9001 certified production

Function

It efficiently filters out dust, particles, moisture and oil mist from incoming air. Protects compressor rotors, bearings and other precision components from wear and damage. Delays lubricant deterioration and extends the service cycle of oil filters, separators and lubricating oil. Keeps intake airflow and pressure stable for long-term efficient operation of equipment.

Application

Various brands of large-scale industrial screw air compressors

Generator sets, mining machinery and engineering construction equipment

Central air supply systems for industrial workshops
