Air Filters

Part No: 1635-9503-00

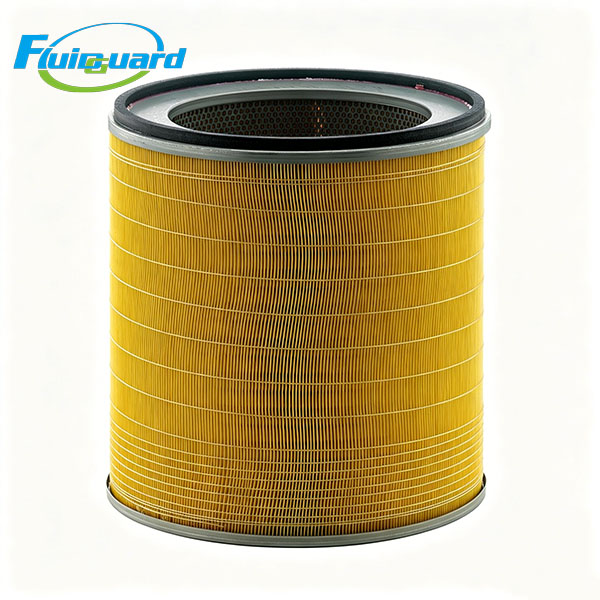

Product Name: Air Filter Element

Dimensions

Outer Diameter: 235 mm

Inner Diameter: 142 mm

Height: 460 mm

Weight: 2.2 kg

Specifications & Features

Filter Media: High-efficiency imported cellulose filter paper

Filtration Accuracy: 5–10 μm

Filtration Efficiency: ≥98.5%

Initial Pressure Drop: ≤0.018 MPa

End Cap: PU rubber, leak-proof and anti-aging

Structure: Double metal mesh support, anti-deformation

Operating Temperature: -10°C to +85°C

Service Life: 2000–3000 hours under normal working conditions

Quality Standard: ISO 9001 certified production

Function

It efficiently removes dust, sand particles, moisture and tiny oil mist from intake air. Prevent compressor rotors, bearings and other precision components from abrasive damage. Slow down the contamination of lubricating oil, and extend the replacement cycle of oil filters, oil separators and lubricants. Keep intake airflow and pressure stable to ensure the compressor runs continuously and efficiently.
