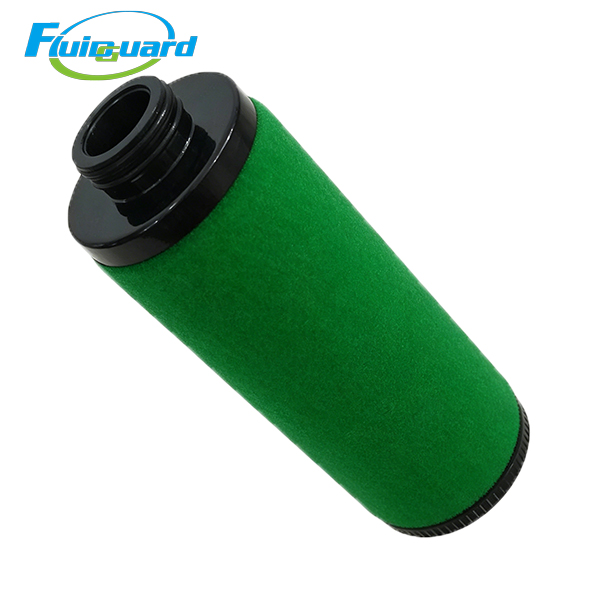

Air Filters

Part Number: 1629010203

Sealing: Integrated high-temperature resistant rubber flat flange gasket

Separation Performance:

Captures oil mist particles ≥0.1 μm

Residual oil carryover in compressed air ≤2–3 ppm

Separation efficiency ≥99.99%

Max Working Pressure: 1.6 MPa

Continuous Operating Temperature: 60℃ ~ 110℃

Initial Pressure Drop: ≤0.02 MPa

Standard Service Life: 4,000 running hours or 12 months

Application Scenarios

Medium factory single-unit compressed air stations, machinery processing workshops, automotive component spray booth pretreatment, food & beverage packaging production lines, laboratory medium-flow precision pneumatic instruments, lithium battery pilot workshop auxiliary air supply

Product Features

High-density multi-gradient microglass coalescing media achieves ultra-high interception efficiency for invisible submicron oil mist; gravity self-drain design minimizes oil loss and reduces long-term operation cost.

Double-layer galvanized metal inner & outer support mesh, excellent anti-vibration & anti-corrosion performance; filter media will not deform, sag or collapse under long-term steady high-temperature airflow impact.

One-piece integrated flange flat gasket with uniform compression force, stable sealing performance under continuous high operating temperature, effectively preventing internal oil-air leakage inside the tank.

Product Description

After rough gravity separation inside the oil tank, oil-air mixed gas flows through this element for secondary ultra-fine coalescence. It recovers most compressor lubricating oil to lower oil consumption, and significantly reduces oil contamination load of downstream inline precision filters, extending the service life of all pipeline compressed air filter elements.
