Air Filters

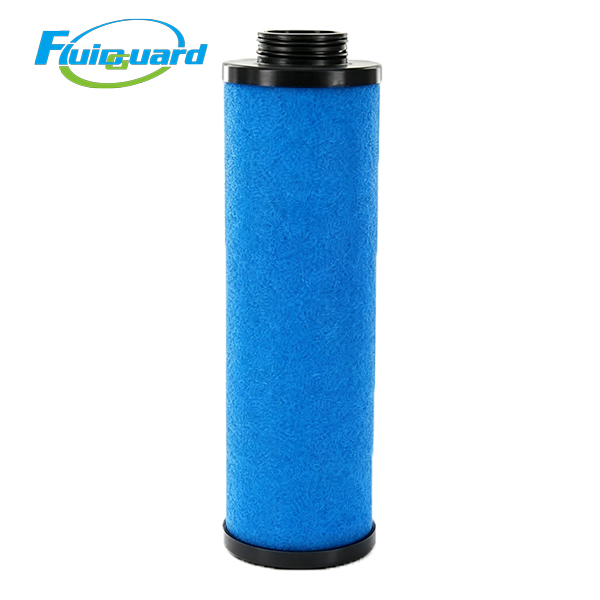

Part No: 1624183103

Filtration Performance: Traps solid particles ≥1 μm, residual liquid oil mist ≤1 ppm

Standard Service Life: 5000 working hours

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.008 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Application Scenarios

Front pretreatment of multi-stage compressed air purification systems, general workshop pneumatic tools, heavy dust casting & machining workshops, pre-protection for refrigerated air dryers, extend service life of downstream high-efficiency coalescing and activated carbon fine filters

Product Features

Outer hydrophobic foam sleeve blocks separated liquid water and oil from re-entering airflow, greatly improving gas-liquid separation efficiency; high dirt-holding gradient glass fiber media intercept most coarse contaminants to slow clogging of rear precision filters.

Ultra-low initial pressure drop deep-pleated design, minimizing long-term system energy loss and electricity consumption.

Epoxy sealed composite end caps & anti-corrosion plastic inner support frame, excellent shock resistance; filter media will not deform under long-term continuous heavy-dust airflow impact.

Standard double O-ring plug-in installation, tool-free quick replacement to cut maintenance downtime; dual EPDM sealing rings resist aging & temperature fluctuation to eliminate pipeline air leakage.

Product Description

It removes large-particle rust, sand dust, bulk condensed water and coarse oil droplets from raw compressed air, effectively prolonging the service life of secondary high-efficiency coalescing & activated carbon filters, lowering overall maintenance frequency and cost of the whole air system.
