Air Filters

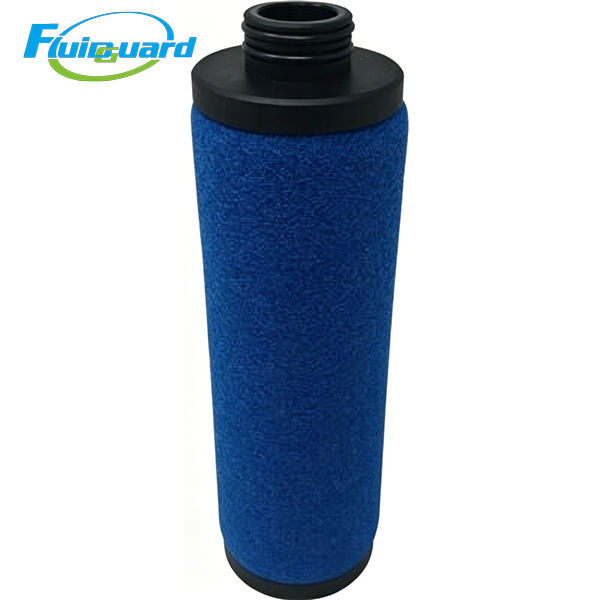

Part No: 2901200426

Filter Media: Multi-layer gradient HV borosilicate micro glass fiber composite + outer hydrophobic foam barrier sleeve

Filtration Performance: Captures solid particles ≥0.01 μm, outlet residual liquid oil mist ≤0.01 ppm

Core Function: Deeply remove micro liquid oil mist, free condensed water and submicron fine dust after DD pre-filter; drastically reduce contamination load of terminal QD activated carbon filter

Standard Service Life: 4000 working hours; shorten to 2000h under heavy oil mist & high humidity workshop conditions

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Application Scenarios

Automotive high-gloss topcoat spraying, electronic cleanroom manufacturing, precision laser cutting, pharmaceutical sterile production air supply, food & beverage packaging, laboratory precision analytical instruments, high-end printing & textile dyeing

Product Features

Outer hydrophobic foam sleeve blocks separated liquid water & oil from re-entering airflow, greatly improves gas-liquid separation efficiency; high liquid-holding glass fiber media stably intercept trace oil mist to reach ultra-low residual liquid oil standard ≤0.01 ppm.

Deep-pleated low-resistance cartridge design, stable low pressure drop throughout full service cycle, effectively reduce long-term air supply power consumption and electricity cost.

Epoxy sealed composite end caps & stainless steel inner support screen, excellent anti-corrosion and shock resistance; filter media will not deform under long-term continuous large airflow impact.

Standard double O-ring plug-in quick-install structure, tool-free replacement to cut maintenance downtime; dual EPDM sealing rings resist aging & temperature fluctuation to eliminate pipeline air leakage.

Product Description

It thoroughly removes micro liquid oil mist, free water and fine particulate impurities that cannot be fully captured by front coarse filter, controlling outlet residual liquid oil below 0.01 ppm, providing high-cleanliness compressed air meeting ISO 8573-1 high purity standards for precision spraying, electronic and pharmaceutical processes.

It effectively protects terminal activated carbon filter, extends its service life and reduces overall air system maintenance cost.
